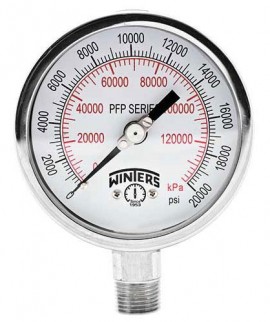

The premium stainless-steel, liquid-filled pressure gauges with 2.5" (6.4 cm) dial come with a 0.25" (0.64 cm) bottom connection. They are highly accurate with an accuracy rate of ±1.5% of full-scale value. These gauges feature stainless-steel internals and a case that protects against vibration and pulsation. Dual scale.
The premium stainless-steel, liquid-filled pressure gauges with 2.5" (6.4 cm) dial come with a 0.25" (0.64 cm) bottom connection. They are highly accurate with an accuracy rate of ±1.5% of full-scale value. These gauges feature stainless-steel internals and a case that protects against vibration and pulsation. Dual scale.
The premium stainless-steel, liquid-filled pressure gauges with 2.5" (6.4 cm) dial come with a 0.25" (0.64 cm) bottom connection. They are highly accurate with an accuracy rate of ±1.5% of full-scale value. These gauges feature stainless-steel internals and a case that protects against vibration and pulsation. Dual scale.
Features
Applications
| Dial | 2.5" (63 mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate, high pressure BSP(G) and HP: tempered safety glass |
| Ring | AISI 304 SS |
| Socket | Welded 1-piece socket |
| Fill Liquid | Glycerin |
| Pointer | Aluminum, anodized black |
| Working Pressure | Maximum 75% of full-scale value |
| Ambient/Process Temperature | -4 to 150°F (-20 to 65°C) |
| Accuracy | ±1.5% of full scale |
| Dial | 2.5" (63 mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate, high pressure BSP(G) and HP: tempered safety glass |
| Ring | AISI 304 SS |
| Socket | Welded 1-piece socket |
| Fill Liquid | Glycerin |
| Pointer | Aluminum, anodized black |
| Working Pressure | Maximum 75% of full-scale value |
| Ambient/Process Temperature | -4 to 150°F (-20 to 65°C) |
| Accuracy | ±1.5% of full scale |
