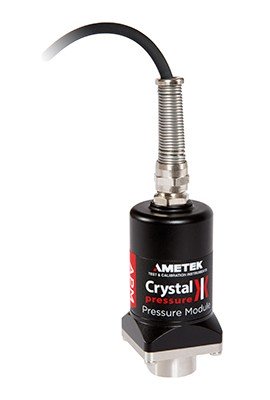

Offer the functionality and flexibility to perform pressure calibrations with a multifunction process calibrator, this pressure module delivers high-level accuracy. Come with a 100 psi range and a ¼" NPT pressure fitting. Additionally, it is ideal in the laboratory or field.
Offer the functionality and flexibility to perform pressure calibrations with a multifunction process calibrator, this pressure module delivers high-level accuracy. Come with a 100 psi range and a ¼" NPT pressure fitting. Additionally, it is ideal in the laboratory or field.
Combine with a hand-held pressure calibrator to expand its range.
Caractéristiques
Applications
| Accuracy | 0.025% of reading |
| Pressure Range | 100 psi |
| Fitting | ¼" NPT |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -40 to 167°F (-40 to 75°C) |
| Enclosure Dimension | 1.4 x 1.4 x 3" (35.5 x 35.5 x 76.2 mm)) |
| Weight | 0.51 lbs (231 g) |
| Accuracy | 0.025% of reading |
| Pressure Range | 100 psi |
| Fitting | ¼" NPT |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -40 to 167°F (-40 to 75°C) |
| Enclosure Dimension | 1.4 x 1.4 x 3" (35.5 x 35.5 x 76.2 mm)) |
| Weight | 0.51 lbs (231 g) |
