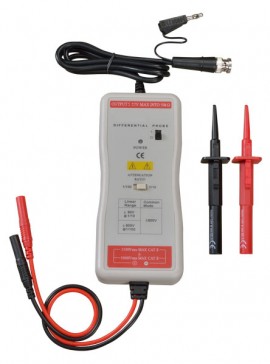

UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Modèle: UT-P33 | CUP: 6935750540787

UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV-

Télécharger: manual

Plus de produits Uni-Trend Technology

Demander à un expert

UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Modèle: UT-P33 | CUP: 6935750540787

A general purpose 120 MHz/14 kV differential probe compatible with all Uni-T oscilloscopes.

A general purpose 120 MHz/14 kV differential probe compatible with all Uni-T oscilloscopes.

Votre prix $2213.00 CAD
Disponibilité 2 à 3 semaines
Quantité

Uni-Trend Technology UT-P33 offre

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 120 MHz bandwidth, you can use this probe for your high-frequency testing.

Caractéristiques

  • Maximum voltage is 14 kV
  • 120 MHz bandwidth
  • Dual attenuation modes for 100:1 and 1000:1
  • Input voltage ranges (DC+AC PEAKTOPEAK) ≤1.4 KV for x100, (about 490 V RMS)/≤14 KV for x1000, (about 4900 V RMS)
  • Probe Accuracy: ±1%
  • Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
  • Output impedance: 50Ω

Spécifications pour le Uni-Trend Technology UT-P33

Probe Type Differential
Probe Attenuation 10:1/100:1
Bandwidth (MHz) 120 MHz
Voltage ±14 kVpp

Le Uni-Trend Technology UT-P33 comprend

  • Differential Scope Probe
  • 2 x Voltage Proves
  • One-Year Warranty
manual pour le UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Poser une question sur le UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Uni-Trend Technology UT-P33 offre

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 120 MHz bandwidth, you can use this probe for your high-frequency testing.

Caractéristiques

  • Maximum voltage is 14 kV
  • 120 MHz bandwidth
  • Dual attenuation modes for 100:1 and 1000:1
  • Input voltage ranges (DC+AC PEAKTOPEAK) ≤1.4 KV for x100, (about 490 V RMS)/≤14 KV for x1000, (about 4900 V RMS)
  • Probe Accuracy: ±1%
  • Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
  • Output impedance: 50Ω
En savoir plus...

Spécifications pour le Uni-Trend Technology UT-P33

Probe Type Differential
Probe Attenuation 10:1/100:1
Bandwidth (MHz) 120 MHz
Voltage ±14 kVpp

Le Uni-Trend Technology UT-P33 comprend

  • Differential Scope Probe
  • 2 x Voltage Proves
  • One-Year Warranty
manual pour le UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Poser une question sur le UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV
