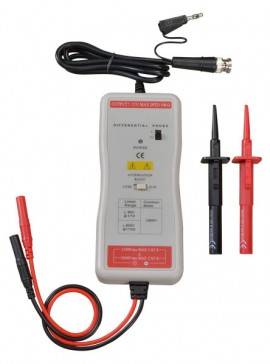

UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Model: UT-P33 | UPC: 6935750540787

Be the first to review this product

A general purpose 120 MHz/14 kV differential probe compatible with all Uni-T oscilloscopes.

Your Price	$2213.00 CAD
Availability	2 to 3 Weeks
Quantity	Quantity

Uni-Trend Technology UT-P33 Offers

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 120 MHz bandwidth, you can use this probe for your high-frequency testing.

Features

Maximum voltage is 14 kV
120 MHz bandwidth
Dual attenuation modes for 100:1 and 1000:1
Input voltage ranges (DC+AC PEAKTOPEAK) ≤1.4 KV for x100, (about 490 V RMS)/≤14 KV for x1000, (about 4900 V RMS)
Probe Accuracy: ±1%
Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
Output impedance: 50Ω

Uni-Trend Technology UT-P33 Specifications

Probe Type	Differential
Probe Attenuation	10:1/100:1
Bandwidth (MHz)	120 MHz
Voltage	±14 kVpp

What's included with the Uni-Trend Technology UT-P33

Differential Scope Probe
2 x Voltage Proves
One-Year Warranty
