This tool measures voltage from 0 to 600 VAC/VDC. It has programmable, dynamic background colors to visually alert you of set readings.
This tool measures voltage from 0 to 600 VAC/VDC. It has programmable, dynamic background colors to visually alert you of set readings.

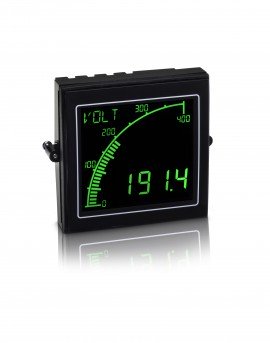

Monitor and record voltage levels with precision by using the Trumeter APM-VOLT-ANO APM Volt Meter with Outputs. With a ±1% accuracy level across its entire measurement range, you can monitor your equipment with certainty. Plus, its user-friendly features, including the wide-viewing angle, dynamic background color, Starburst display and more, make this meter quick and convenient to operate.
Features
| Voltage Range | 0 to 600 VDC |
| Input Range | 0 to 600 VAC |
| Input Voltage Frequency | DC, 30 to 400 Hz |
| Overvoltage Rating | 800 V maximum |
| Impedance | 1.5 MΩ |
| Accuracy | 1% |
| Resolution | 10 mV |
| Sample Rate | 62 kHz |
| Display Mode | Peak or RMS |
| Temperature | Operating: 14 to 140°F (-10 to 60°C); storage: -40 to 158°F (-40 to 70°C) |
| Protection Rating | IP65 |
| Display | Negative LCD with four 0.47" (12 mm) digits and 4 message characters |
| Output | 34 V maximum; 500 mA maximum; 4 to 20 mA analog |
| Power Supply | 12 to 24 VAC/VDC |
| Compliance | UL, cUL, CE |
| Product Length | 2.09" (53 mm) |
| Product Width | 2.83" (72 mm) |
| Product Height | 2.83" (72 mm) |
Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Trumeter APM-VOLT-ANO APM Volt Meter with Outputs, Negative LCD, 0 to 600 VAC/VDC.
| Voltage Range | 0 to 600 VDC |
| Input Range | 0 to 600 VAC |
| Input Voltage Frequency | DC, 30 to 400 Hz |
| Overvoltage Rating | 800 V maximum |
| Impedance | 1.5 MΩ |
| Accuracy | 1% |
| Resolution | 10 mV |
| Sample Rate | 62 kHz |
| Display Mode | Peak or RMS |
| Temperature | Operating: 14 to 140°F (-10 to 60°C); storage: -40 to 158°F (-40 to 70°C) |
| Protection Rating | IP65 |
| Display | Negative LCD with four 0.47" (12 mm) digits and 4 message characters |
| Output | 34 V maximum; 500 mA maximum; 4 to 20 mA analog |
| Power Supply | 12 to 24 VAC/VDC |
| Compliance | UL, cUL, CE |
| Product Length | 2.09" (53 mm) |
| Product Width | 2.83" (72 mm) |
| Product Height | 2.83" (72 mm) |
