Mesurez la longueur de fils et d'autres matériaux avec cette machine de mesure. Elle est dotée de guides d'entrée et de sortie en acier.
Mesurez la longueur de fils et d'autres matériaux avec cette machine de mesure. Elle est dotée de guides d'entrée et de sortie en acier.

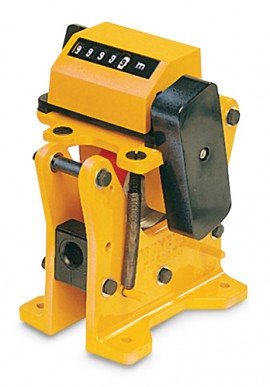

Perform a number of tasks with the Trumeter 2630-132CB Cable/Wire/Rope Measuring Machine. This measurer is the perfect tool for batching wire, laying cable, retail dispensing and more. Its durable cast aluminum and hardened steel construction can stand up to even the harshest conditions. Plus, you can interface this measurer to a data processing system, simplifying your work and saving you time.
Caractéristiques
Applications
| Unit of Measurement | Meters and centimeters |
| Measurement Range | Up to 9,999.9 m |
| Material Travel | Away from operator |
| Encoder | No |
| Counter Type | Trumeter 3602 |
| Cable Diameter Range | 0.0197 to 0.59" (0.5 to 15 mm) |
| Measuring Wheel Circumference | 9.84" (250 mm) |
| Maximum Speed of Travel | 4,921'/minute (1,500 m/minute) or 3,000 counts/minute, whichever lower |
| Structure Material | Heavy-duty cast aluminum |
| Guide Material | Hardened steel |
| Measuring Wheel Cover | Polyurethane |
| Product Length | 18.35" (466 mm) diameter |
| Product Width | 11.02" (280 mm) |
| Product Height | 10.24" (260 mm) |
| Product Weight | 6.6 lbs (3 kg) |
| Unit of Measurement | Meters and centimeters |
| Measurement Range | Up to 9,999.9 m |
| Material Travel | Away from operator |
| Encoder | No |
| Counter Type | Trumeter 3602 |
| Cable Diameter Range | 0.0197 to 0.59" (0.5 to 15 mm) |
| Measuring Wheel Circumference | 9.84" (250 mm) |
| Maximum Speed of Travel | 4,921'/minute (1,500 m/minute) or 3,000 counts/minute, whichever lower |
| Structure Material | Heavy-duty cast aluminum |
| Guide Material | Hardened steel |
| Measuring Wheel Cover | Polyurethane |
| Product Length | 18.35" (466 mm) diameter |
| Product Width | 11.02" (280 mm) |
| Product Height | 10.24" (260 mm) |
| Product Weight | 6.6 lbs (3 kg) |
