Measuring DC voltage/current and source DC mA current with an accuracy of 0.02%, this process calibrator can simultaneously provide 24V loop power to transmitter while conducting mA current measurement. In addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Measuring DC voltage/current and source DC mA current with an accuracy of 0.02%, this process calibrator can simultaneously provide 24V loop power to transmitter while conducting mA current measurement. In addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.

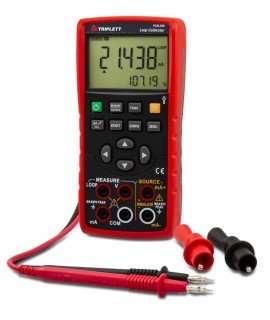

The Triplett PCAL300 Loop Process Calibrator for benchtop and field industrial process device testing and calibration features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight.
Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Caractéristiques
Applications
| Measurement | |
| DC Voltage | 30 V (0.001 V) Accuracy: ±(0.02% + 2 mV) |
| DC Current | 30 mA (0.001 mA) Accuracy: ±(0.02% + 4μA) |
| Source | |
| DC Current | 30 mA (0.001 mA) Accuracy: ±(0.05% + 4μA) |
| Loop Power | 24 V Accuracy: ±(10%) |
| General Specifications | |
| Power | 3 x AA batteries |
| Dimensions | 7 x 3.5 x 2" (178 x 89 x 51 mm) |
| Weight | 1 lbs (454 g) |
| Measurement | |
| DC Voltage | 30 V (0.001 V) Accuracy: ±(0.02% + 2 mV) |
| DC Current | 30 mA (0.001 mA) Accuracy: ±(0.02% + 4μA) |
| Source | |
| DC Current | 30 mA (0.001 mA) Accuracy: ±(0.05% + 4μA) |
| Loop Power | 24 V Accuracy: ±(10%) |
| General Specifications | |
| Power | 3 x AA batteries |
| Dimensions | 7 x 3.5 x 2" (178 x 89 x 51 mm) |
| Weight | 1 lbs (454 g) |
