L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.

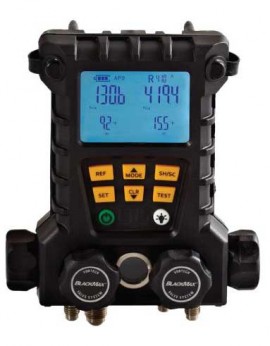

This 4-valve digital manifold can be used as conventional manifolds or connected wirelessly with virtually any iOS or Android mobile device using the Manifold Link app.
This 4-valve digital manifold can be used as conventional manifolds or connected wirelessly with virtually any iOS or Android mobile device using the Manifold Link app.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Voici le produit de remplacement direct :
This 4-valve wireless digital manifold has alternate views for smaller mobile devices.
Features
Best-In-Class Accuracy
Rugged Design
Full System Measurement
App Features
| High and Low Side Pressure Range | -14.5 to 800 psig (-1 to 55 bar) |
| Pressure Reading Accuracy | ±1% of reading or ±0.5 psig (±0.05 bar) |
| Pressure Reading Resolution | 0.5 psig (0.05 bar) |
| High and Low Side Burst Pressure | 1500 psig (103.4 bar) |
| High and Low Side Temperature Range | -58 to 302°F (-50 to 150°C) |
| Temperature Reading Accuracy | ±0.36°F (±0.2°C) |
| Vacuum Indication Accuracy | ±10 microns (requires MDXVG accessory) |
| SH, SC and Saturation Temperature Accuracy | ±0.5°F (±0.3°C) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Communication range (with CPS Link™) | 300' (91.44 m) max (Depends on device capabilities) |
| Operating RH Range | 0 to 100% non-condensing |
| Automatic Power Off | 10 minutes. Can be disabled by user |
| Dimensions | 8.1 x 3.5 x 7" (20.5 x 8.9 x 17.8 cm) |
| Weight | 3.3 lb (1.5 kg) |
| Battery Life | Backlight Full ON: 20 to 25+ hrs. Continuous Duty
Backlight Full OFF: 50 to 60+ hrs. Continuous Duty |
| High and Low Side Pressure Range | -14.5 to 800 psig (-1 to 55 bar) |
| Pressure Reading Accuracy | ±1% of reading or ±0.5 psig (±0.05 bar) |
| Pressure Reading Resolution | 0.5 psig (0.05 bar) |
| High and Low Side Burst Pressure | 1500 psig (103.4 bar) |
| High and Low Side Temperature Range | -58 to 302°F (-50 to 150°C) |
| Temperature Reading Accuracy | ±0.36°F (±0.2°C) |
| Vacuum Indication Accuracy | ±10 microns (requires MDXVG accessory) |
| SH, SC and Saturation Temperature Accuracy | ±0.5°F (±0.3°C) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Communication range (with CPS Link™) | 300' (91.44 m) max (Depends on device capabilities) |
| Operating RH Range | 0 to 100% non-condensing |
| Automatic Power Off | 10 minutes. Can be disabled by user |
| Dimensions | 8.1 x 3.5 x 7" (20.5 x 8.9 x 17.8 cm) |
| Weight | 3.3 lb (1.5 kg) |
| Battery Life | Backlight Full ON: 20 to 25+ hrs. Continuous Duty
Backlight Full OFF: 50 to 60+ hrs. Continuous Duty |
