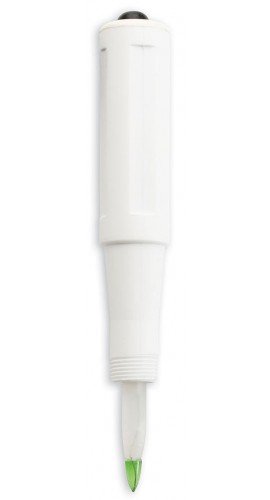

Hanna FC2323 Foodcare pH Electrode for Meat Products with Quick Connect DIN Connector

Model: FC2323 | Order No: FC 2323

Hanna FC2323 Foodcare pH Electrode for Meat Products with Quick Connect DIN Connector-

More Hanna Products

Ask an Expert

Hanna FC2323 Foodcare pH Electrode for Meat Products with Quick Connect DIN Connector

Model: FC2323 | Order No: FC 2323

The amplified single junction pH electrode has a built-in temperature sensor and connects to the meter with a DIN connector.

The amplified single junction pH electrode has a built-in temperature sensor and connects to the meter with a DIN connector.

Sale Price $350.55 CAD
Regular Price $369.00 CAD
Availability 3 Days
Quantity

Recommended Accessories

Hanna HI7007L Calibration Solution, pH 7.01, 500 mL-

Hanna HI7007L Calibration Solution, pH 7.01, 500 mL

HI7007L

Hanna FC230B Stainless Steel Blade for Meat pH Electrodes-

Hanna FC230B Stainless Steel Blade for Meat pH Electrodes

FC098

Hanna HI70630L Grease and Fats Acid Cleaning Solution, 500 mL-

Hanna HI70630L Grease and Fats Acid Cleaning Solution, 500 mL

HI70630L

Hanna HI70631L Grease and Fats Alkaline Cleaning Solution, 500 mL-

Hanna HI70631L Grease and Fats Alkaline Cleaning Solution, 500 mL

HI70631L

Hanna FC099 Stainless Steel Blade for Meat pH Electrodes-

Hanna FC099 Stainless Steel Blade for Meat pH Electrodes

FC099

Hanna FC2323 Offers

This design consideration is ideal for pH measurements in meat and semi-frozen food samples. The recommended operating temperature range is from 0 to 50°C.

Features

  • Low Temperature Glass- the glass tip uses a special LT glass formulation with a lower resistance of approximately 50 megaohms compared to general purpose with a resistance of about 100 megaohms
  • Stainless Steel Piercing Blade- an optional stainless steel blade is attached to the probe for easy meat penetration, even in frozen samples
  • Open Junction- this interface not only prevents silver from entering the sample, but also make it impermeable to clogging, resulting in a fast response and stable readings
  • Low Temperature Glass Formulation- the glass tip uses a special LT glass formulation with a lower resistance of approximately 50 megaohms compared to general purpose with a resistance of about 100 megaohms
  • Conical Glass Tip- the colonical shaped tip design that allows for penetration into solids, and emulsions for the direct measurement in pH in food products
  • PVDF Body- polyvinylidene fluoride is a food grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite
  • Quick Connect DIN Connector- can only be used with the HI98140, HI98150, HI98230, and HI98240 portable meters

Are you Making Errors when Measuring pH?

  • Storing the Electrode Dry
  • Wiping the Sensing Glass
  • Storing the Electrode in DI Water
  • Not Cleaning the Electrode
  • Calibration Errors
  • Electrode Selection
  • Not Loosening or Removing the Fill Hole Cap
  • Electrolyte Fill Level
  • Inadequate Probe Submersion
  • Using an Old or Expired Electrode

Five Tips for Calibrating your pH Meter

  • Always Read your Manual
  • Make Sure you Have the Right pH Buffers
  • Calibrate Often
  • Be Aware of your Slope and Offset
  • Electrode Care

Hanna FC2323 Specifications

Body Material PVDF
Reference single, Ag/AgCl
Junction / Flow Rate open
Electrolyte viscolene
Range pH: 0 to 12
Max Pressure 0.1 bar
Tip Shape conic (6 x 10 mm)
Diameter 6 mm

What's included with the Hanna FC2323

  • Hanna FC2323 Foodcare pH Electrode for Meat Products with Quick Connect DIN Connector

Click on a category to view a selection of compatible accessories with the Hanna FC2323 Foodcare pH Electrode for Meat Products with Quick Connect DIN Connector.

Hanna HI70300L Electrode Storage Solution, 500 mL HI70300L
A storage solution prepared with reagent grade chemicals that can be used to ensure optimum performance of your pH and ORP electrodes. It is necessary to store a pH electrode in a solution in order to keep the glass membrane of the pH electrode hydrated.



Hanna HI7010L Calibration Solution, pH 10.01, 500 mL HI7010L
Calibration buffer solution with a pH of 10.01. The lot number and expiration date are clearly marked on the label, with an air tight and tamper proof seal, to ensure the quality of the solution. Hanna's line of calibration buffers have been specially formulated to have an expiration of 2 years from the date of manufacture for an unopened bottle.



Hanna HI7007L Calibration Solution, pH 7.01, 500 mL HI7007L
Calibration buffer solution with a pH of 7.01. The lot number and expiration date are clearly marked on the label, with an air tight and tamper proof seal, to ensure the quality of the solution. Hanna's line of calibration buffers have been specially formulated to have an expiration of 2 years from the date of manufacture for an unopened bottle.



Hanna HI70630L Grease and Fats Acid Cleaning Solution, 500 mL HI70630L
Electrodes can become dirty from use and will produce inaccurate results even as they read correctly in a pH buffer. This acidic cleaning solution is specially formulated to use in applications in which the pH electrode can be coated with grease and fats.



Hanna HI70631L Grease and Fats Alkaline Cleaning Solution, 500 mL HI70631L
Effective alkaline cleaning solution that is specially formulated for use in applications where a pH electrode can be coated with grease and fats. Eliminate impurities and residues that are left on electrode surfaces when immersed in samples during measurement and or stored incorrectly.



Hanna FC230B Stainless Steel Blade for Meat pH Electrodes FC098
Stainless steel blade for piercing meat with a pH electrode. This blade measures 20 mm (0.8") long and screws on the compatible Hanna Instruments pH electrodes designed for meat analysis.



Hanna FC099 Stainless Steel Blade for Meat pH Electrodes FC099
Stainless steel blade for piercing meat with a pH electrode. This blade measures 35 mm long and screws on the compatible Hanna Instruments pH electrodes designed for meat analysis.
