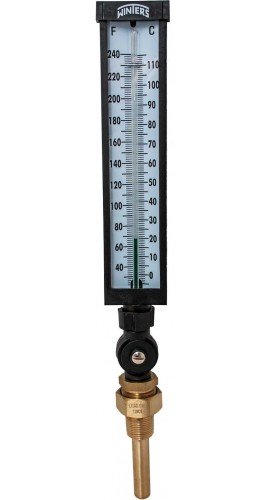

Largement spécifié dans le secteur de la plomberie industrielle et commerciale. Comprend un puits thermométrique séparable en laiton sans plomb.
Largement spécifié dans le secteur de la plomberie industrielle et commerciale. Comprend un puits thermométrique séparable en laiton sans plomb.
Caractéristiques
Applications
| Stem | 30 to 240°F (0 to 115°C) |
| Scale | 9" Valox® Case, impact resistant |
| Lens | Glass |
| Connection | 3/4" NPT with thermowell 1 1/4" - 18 UNF swivel nut (no thermowell) |
| Scales | Aluminum, painted white with black markings |
| Bulb Chamber | Tapered cast aluminum with graphite fill |
| Tube and Sensing Liquid | Glass (magnifying), organic green fluid (other colours optional) |
| Adjustment | Fully adjustable |
| Thermowell | 3/4" Lead free brass, separable socket |
| Accuracy | ±1% |
| Enclosure Rating | IP54 |
