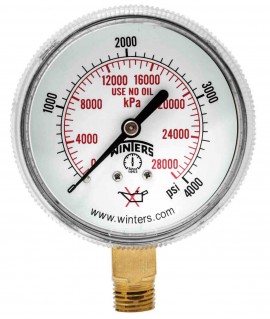

L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.
Comes in economical, non-sparking brass 2.5" (63mm) case and features a threaded-on polycarbonate lens. It has a pressure range of 0-4,000 psi/kPa and a 1/4" NPT bottom connection.
Comes in economical, non-sparking brass 2.5" (63mm) case and features a threaded-on polycarbonate lens. It has a pressure range of 0-4,000 psi/kPa and a 1/4" NPT bottom connection.
Threaded-on polycarbonate lens.
Features
Applications
| Case | Brass, polished |
| Lens | Polycarbonate, threaded |
| Connection | 1.5" (40mm): 1/8" NPT bottom, 2" (50mm), 2.5" (63mm): 1/4" NPT bottom |
| Movement | Brass |
| Pointer | Aluminum, painted black |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40 to 150°F (-40 to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Case | Brass, polished |
| Lens | Polycarbonate, threaded |
| Connection | 1.5" (40mm): 1/8" NPT bottom, 2" (50mm), 2.5" (63mm): 1/4" NPT bottom |
| Movement | Brass |
| Pointer | Aluminum, painted black |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40 to 150°F (-40 to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
