Watlow 17-5114 Offers

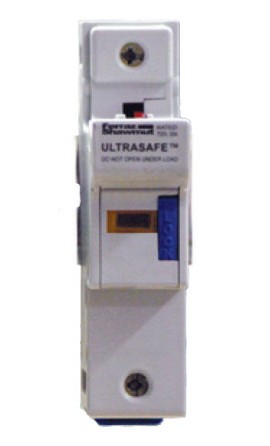

The Watlow 17-5114 Semiconductor Fuse Holder is recommended to protect the power controller and ensure long life. To safeguard power controllers, Watlow offers DIN rail mount fuse holders and semiconductor fuses in various sizes to accommodate the entire DIN-A-MITE SCR power controller family and solid state relay products. These fuse holders feature lockout/tagout and open fuse indication. All fuses should be rated at 125% of connected load or the next standard fuse size above 125%. Due to special cases such as cooler ambient or lower amperage loads, the connected load should be the determining factor.

Features

• Recommended to protect power controllers and ensure long life
• Offers DIN rail mount fuse holders and semiconductor fuses in various sizes
• Lockout/tagout and open fuse indication for convenience
• All fuses should be rated at 125% of connected load or next standard fuse size above 125%
• Classified as supplemental protection for semiconductor devices
• Not approved for branch circuit protection
