The electrode fitting features a 1-piece electrode core which can be trimmed to length in the field. It has a compact stainless steel body and a nylon insulation sleeve for long-lasting use.
The electrode fitting features a 1-piece electrode core which can be trimmed to length in the field. It has a compact stainless steel body and a nylon insulation sleeve for long-lasting use.

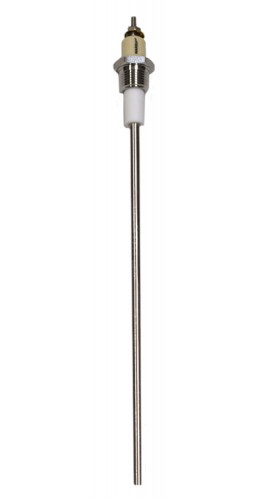

The Warrick 3H1B2D Electrode Fitting features a 1-piece electrode core which can be trimmed to length in the field. It has a compact design made of stainless steel and a nylon insulation sleeve for durability. It is capable of withstanding up to 250 psig (17 bar) at 406°F (208°C).
Features
| Number of Probes | 1 |
| Body Material | 316 Stainless Steel |
| Mounting | 0.38" (0.97 cm) to 18 NPT |
| Sheathing Material | Teflon |
| Approvals | UL, CSA, FM |
| Weight | 1.3 lbs (0.59 kg) |
| Number of Probes | 1 |
| Body Material | 316 Stainless Steel |
| Mounting | 0.38" (0.97 cm) to 18 NPT |
| Sheathing Material | Teflon |
| Approvals | UL, CSA, FM |
| Weight | 1.3 lbs (0.59 kg) |
