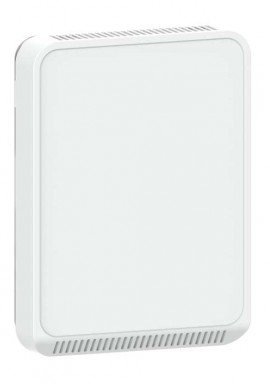

Veris HW2XA2A Wall Humidity Sensor, solid state, integrated

Modèle: HW2XA2A

Veris HW2XA2A Wall Humidity Sensor, solid state, integrated-

Télécharger: datasheet manual

Plus de produits Veris

Demander à un expert

Veris HW2XA2A Wall Humidity Sensor, solid state, integrated

Modèle: HW2XA2A

Versatile and easy to use, this humidity wall sensor features a blank white user interface. With 2% measurement accuracy, the unit provides reliable results and comes equipped with a temperature and humidity sensor.

Versatile and easy to use, this humidity wall sensor features a blank white user interface. With 2% measurement accuracy, the unit provides reliable results and comes equipped with a temperature and humidity sensor.

Prix spécial $259.35 CAD
Prix régulier $648.83 CAD
Disponibilité 5 à 6 semaines
Quantité

Veris HW2XA2A Offers

Compatible with various BAS controllers, this wall-mount humidity sensor provides flexible and reliable humidity and temperature control.

Features

  • Thin-film capacitive sensor element recovers from 100% saturation
  • Replace element in the field maintains accuracy and minimize downtime
  • Fully interchangeable element to 1% or 2% accuracy with NIST calibration certificate
  • Large wiring terminals on baseplate and snap-on covers with security screw simplify installation and service
  • Polarity insensitive, two-wire 4 to 20 mA or 3-wire 0 to 5/0 to 10 Vdc versions
  • Flexible systems compatibility saves time in the field, stock fewer devices
  • Calibration-free interchangeable NIST traceable HS element

Applications

  • Controlling HVAC/R systems for improved comfort and energy savings
  • Museums, schools, printing shops, and other locations requiring humidity control
  • Facilitating compliance with ASHRAE standards for environmental control and indoor air quality

Veris HW2XA2A Specifications

Color Matte white
Electrical Wiring Size Screw terminals, 18 to 24 AWG
Enclosure Material High impact ABS plastic
Humidity Measurement Accuracy: ±2% from 10 to 80% RH at 77°F (25°C)
Range: 0 to 100% RH
Resolution: 0.1% RH
Sensor Type: thin-film capacitive, replaceable
IP Protection IP20
Input Specifications Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Measurement Type RH / Temperature
Operating Humidity 0 to 95% RH non-condensing
Operating Temperature 32 to 122°F (0 to 50°C)
Output Specifications Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
Outputs Analog
Override No
Setpoint No
Standards EMC EN61000 Series - industrial immunity
Temperature Measurement Accuracy: ±0.4°F (±0.2°C) typical
Range: 32 to 122°F (0 to 50°C)
Resolution: 0.1°F (0.1°C)
Sensor type: solid state, integrated circuit
Cliquer ici pour toutes les spécifications du Veris HW2XA2A

Le Veris HW2XA2A comprend

  • Veris HW2XA2A Wall Humidity Sensor, solid state, integrated
datasheet pour le Veris HW2XA2A Wall Humidity Sensor, solid state, integrated manual pour le Veris HW2XA2A Wall Humidity Sensor, solid state, integrated

Poser une question sur le Veris HW2XA2A Wall Humidity Sensor, solid state, integrated

Veris HW2XA2A Offers

Compatible with various BAS controllers, this wall-mount humidity sensor provides flexible and reliable humidity and temperature control.

Features

  • Thin-film capacitive sensor element recovers from 100% saturation
  • Replace element in the field maintains accuracy and minimize downtime
  • Fully interchangeable element to 1% or 2% accuracy with NIST calibration certificate
  • Large wiring terminals on baseplate and snap-on covers with security screw simplify installation and service
  • Polarity insensitive, two-wire 4 to 20 mA or 3-wire 0 to 5/0 to 10 Vdc versions
  • Flexible systems compatibility saves time in the field, stock fewer devices
  • Calibration-free interchangeable NIST traceable HS element

Applications

  • Controlling HVAC/R systems for improved comfort and energy savings
  • Museums, schools, printing shops, and other locations requiring humidity control
  • Facilitating compliance with ASHRAE standards for environmental control and indoor air quality
En savoir plus...

Veris HW2XA2A Specifications

Color Matte white
Electrical Wiring Size Screw terminals, 18 to 24 AWG
Enclosure Material High impact ABS plastic
Humidity Measurement Accuracy: ±2% from 10 to 80% RH at 77°F (25°C)
Range: 0 to 100% RH
Resolution: 0.1% RH
Sensor Type: thin-film capacitive, replaceable
IP Protection IP20
Input Specifications Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Measurement Type RH / Temperature
Operating Humidity 0 to 95% RH non-condensing
Operating Temperature 32 to 122°F (0 to 50°C)
Output Specifications Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
Outputs Analog
Override No
Setpoint No
Standards EMC EN61000 Series - industrial immunity
Temperature Measurement Accuracy: ±0.4°F (±0.2°C) typical
Range: 32 to 122°F (0 to 50°C)
Resolution: 0.1°F (0.1°C)
Sensor type: solid state, integrated circuit
Cliquer ici pour toutes les spécifications du Veris HW2XA2A

Le Veris HW2XA2A comprend

  • Veris HW2XA2A Wall Humidity Sensor, solid state, integrated
datasheet pour le Veris HW2XA2A Wall Humidity Sensor, solid state, integrated manual pour le Veris HW2XA2A Wall Humidity Sensor, solid state, integrated

Poser une question sur le Veris HW2XA2A Wall Humidity Sensor, solid state, integrated
