Veris CWVS1XX1 Wall CO2 Sensor, dual analog output

Modèle: CWVS1XX1

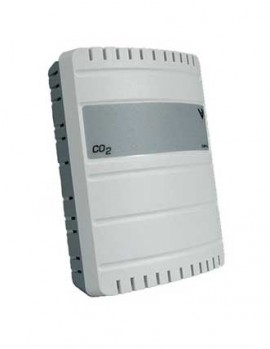

Veris CWVS1XX1 Wall CO<sub>2</sub> Sensor, dual analog output-

Télécharger: datasheet

Plus de produits Veris

Demander à un expert

Veris CWVS1XX1 Wall CO2 Sensor, dual analog output

Modèle: CWVS1XX1

The wall CO2 sensor with dual analog output is a non-dispersive infrared analyzer designed for measuring CO2 concentration in office and living spaces.

The wall CO2 sensor with dual analog output is a non-dispersive infrared analyzer designed for measuring CO2 concentration in office and living spaces.

Discontinué!

Ce produit a été discontinué et n’est plus disponible.

Il n’y a pas de remplacement direct, mais nous vous recommandons:

Veris CWV2 Capteur de qualité de l'air mural-

Veris CWV2 Capteur de qualité de l'air mural

Modèle: CWV2

Un capteur infrarouge non dispersif (NDIR) mural conçu pour mesurer la concentration de CO2 environnemental dans les espaces de vie intérieurs.

En savoir plus

Vous ne trouvez pas ce que vous cherchez? Nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin.

Veris CWVS1XX1 offre

The wall CO₂ sensor with dual analog output is a non-dispersive infrared analyzer designed for measuring CO₂ concentration in office and living spaces.

Caractéristiques

  • Non-dispersive infrared technology repeatable to ±30 ppm ±4.5% of measured value
  • Innovative self-calibration algorithm easy to maintain
  • 5-year calibration interval (recommended)
  • Improve comfort and facilitate compliance with ASHRAE 62.1-2004 standard for air quality
  • Helps with green branding initiatives
  • Dual analog outputs for added user convenience
  • LED indication for power and error detection reduces time spent troubleshooting
  • Switchable 0 to 3/5/10 V output gives increased flexibility
  • US and European mounting holes provide installation flexibility
  • Field calibratable to reduce costly downtime
  • 4 to 20 mA and voltage outputs in 1 unit for greater versatility

Applications

  • Controlling HVAC/R in Response to Occupancy, Save Energy by Providing Ventilation Only as Required
  • Improving Tenant Comfort
  • Schools, Museums, Airports, Commercial Buildings, etc.
  • OEM Applications
  • Home Automation
  • Big-Box Retail
  • Restaurants
  • C-Stores

Spécifications pour le Veris CWVS1XX1

Input Power 20 to 30 VDC, 24 VAC
Analog Output #1 4 to 20 mA (clipped and capped) or 0 to 3 VDC/0 to 5 VDC/0 to 10 VDC (jumper selectable)
Analog Output #2 4 to 20 mA (clipped and capped) or 0 to 3 VDC/0 to 5 VDC/0 to 10 VDC (jumper selectable)
Sensor Current Draw 200 mA maximum
Operating Humidity Range 0 to 95% RH (non-condensing)
Operating Temperature Range 32 to 122°F (0 to 50°C)
Housing Material High-impact ABS plastic
Relay Contacts (Optional) Form C (SPDT) 1 A at 30 VDC, resistive; 30 W max
Sensor Type Non-dispersive infrared (NDIR), diffusion sampling
Measurement Range 0 to 2,000 ppm
Accuracy ±40 ppm ±8.5% of measured value
Repeatability ±30 ppm ±4.5% of measured value
Response Time About 60 seconds for 90% step change

Le Veris CWVS1XX1 comprend

  • Veris CWVS1XX1 Wall CO2 Sensor, dual analog output
datasheet pour le Veris CWVS1XX1 Wall CO2 Sensor, dual analog output

Poser une question sur le Veris CWVS1XX1 Wall CO2 Sensor, dual analog output

Veris CWVS1XX1 offre

The wall CO₂ sensor with dual analog output is a non-dispersive infrared analyzer designed for measuring CO₂ concentration in office and living spaces.

Caractéristiques

  • Non-dispersive infrared technology repeatable to ±30 ppm ±4.5% of measured value
  • Innovative self-calibration algorithm easy to maintain
  • 5-year calibration interval (recommended)
  • Improve comfort and facilitate compliance with ASHRAE 62.1-2004 standard for air quality
  • Helps with green branding initiatives
  • Dual analog outputs for added user convenience
  • LED indication for power and error detection reduces time spent troubleshooting
  • Switchable 0 to 3/5/10 V output gives increased flexibility
  • US and European mounting holes provide installation flexibility
  • Field calibratable to reduce costly downtime
  • 4 to 20 mA and voltage outputs in 1 unit for greater versatility

Applications

  • Controlling HVAC/R in Response to Occupancy, Save Energy by Providing Ventilation Only as Required
  • Improving Tenant Comfort
  • Schools, Museums, Airports, Commercial Buildings, etc.
  • OEM Applications
  • Home Automation
  • Big-Box Retail
  • Restaurants
  • C-Stores
En savoir plus...

Spécifications pour le Veris CWVS1XX1

Input Power 20 to 30 VDC, 24 VAC
Analog Output #1 4 to 20 mA (clipped and capped) or 0 to 3 VDC/0 to 5 VDC/0 to 10 VDC (jumper selectable)
Analog Output #2 4 to 20 mA (clipped and capped) or 0 to 3 VDC/0 to 5 VDC/0 to 10 VDC (jumper selectable)
Sensor Current Draw 200 mA maximum
Operating Humidity Range 0 to 95% RH (non-condensing)
Operating Temperature Range 32 to 122°F (0 to 50°C)
Housing Material High-impact ABS plastic
Relay Contacts (Optional) Form C (SPDT) 1 A at 30 VDC, resistive; 30 W max
Sensor Type Non-dispersive infrared (NDIR), diffusion sampling
Measurement Range 0 to 2,000 ppm
Accuracy ±40 ppm ±8.5% of measured value
Repeatability ±30 ppm ±4.5% of measured value
Response Time About 60 seconds for 90% step change

Le Veris CWVS1XX1 comprend

  • Veris CWVS1XX1 Wall CO2 Sensor, dual analog output
datasheet pour le Veris CWVS1XX1 Wall CO2 Sensor, dual analog output

Poser une question sur le Veris CWVS1XX1 Wall CO2 Sensor, dual analog output
