Use this digital multimeter to measure voltage, current, resistance and temperature. The results are easy to read on the LCD.
Use this digital multimeter to measure voltage, current, resistance and temperature. The results are easy to read on the LCD.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Il n’y a pas de remplacement direct, mais nous vous recommandons:
Vous ne trouvez pas ce que vous cherchez? Nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin.

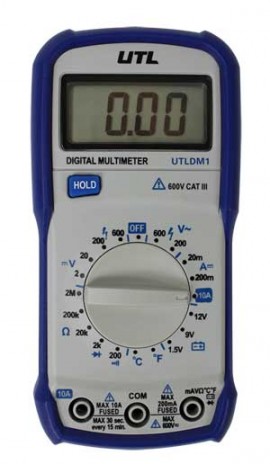

With this UEi UTLDM1 Manual Ranging Digital Multimeter, you can easily measure voltage, current, resistance and temperature and perform diode and battery tests with the included test leads. The LCD is comfortable to read, and the leads can be stored on the back of the unit.
Caractéristiques
| Voltage | 2 to 600 VDC, 200 to 600 VAC |
| DC Current | 20 mA to 10 A |
| Resistance | 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ |
| Diode Test | 0.5 to 0.7 V range, 1.2 mA maximum test current, 2.7 V open circuit voltage |
| Temperature | -4 to 1,832°F (-20 to 1,000°C) with 1°F (1°C) resolution |
| Battery Test | 1.5 V, 9 V, 12 V |
| Continuity Test | 250 Vrms overload protection, 2.7 V open circuit voltage |
| Display | 3.5 digits, 2,000 count, LCD |
| Power Supply | 9 V battery |
| Manufacturer Warranty | 1-year limited |
