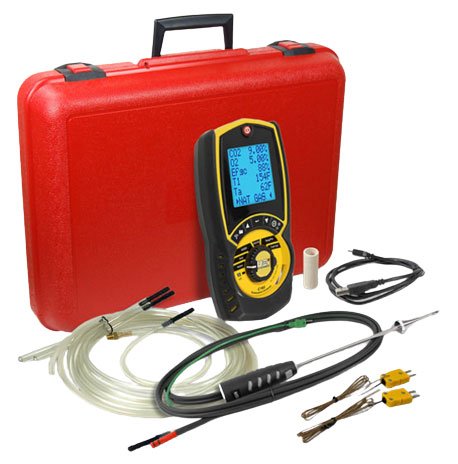

Ideal for combustion analysis, this flue gas analyzer offers essential information for installing and maintaining gas appliances and features a 30-second start-up time. In addition, it is easy to use with a rugged design and has multiple sensor protections, altitude compensation, heat exchanger test, and differential pressure.
Ideal for combustion analysis, this flue gas analyzer offers essential information for installing and maintaining gas appliances and features a 30-second start-up time. In addition, it is easy to use with a rugged design and has multiple sensor protections, altitude compensation, heat exchanger test, and differential pressure.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Il n’y a pas de remplacement direct, mais nous vous recommandons:
Vous ne trouvez pas ce que vous cherchez? Nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin.
Caractéristiques
Functions
Applications
| Temperature Measurement | |
| Flue Temperature | Range: 32 to 1112°F (0 to 600°C) Resolution: 0.1°F (0.1°C) Accuracy: ±(0.3% rdg +3.6°F [2°C]) |
| Inlet Temperature (Internal Sensor) | Range: 32 to 122°F (0 to 50°C) Resolution: 0.2°F (0.1°C) Accuracy: ±2°F (1°C) |
| Inlet Temperature (External Sensor) | Range: 32 to 1112°F (0 to 600°C) Resolution: 0.2° (0.1°C) Accuracy: ±2°F (1°C) |
| Flue Gas Measurement | |
| Carbon Monoxide | Range: 0 to 2000 ppm Resolution: 1 ppm Accuracy: ±3 ppm or ±5% rdg (whichever is greater) |
| Carbon Dioxide | Range: 0 to 20% Resolution: 0.1% Accuracy: ±0.3% volume |
| Calculations | |
| Oxygen | Range: 0 to 21% Resolution: 0.1% Accuracy: ±0.3% volume |
| CO/CO2 Ratio | Range: 0 to 0.9999 Resolution: 0.0001 Accuracy: ±5% rdg |
| Efficiency (Net or Gross) | Range: 0 to 99.9% Resolution: 0.1% Accuracy: ±1% rdg |
| Efficiency High (C) | Range: 0 to 119.9% Resolution: 0.1% Accuracy: ±1% rdg |
| Excess Air | Range: 0 to 119.9% Resolution: 0.1% Accuracy: ±0.2% rdg |
| General Specifications | |
| Pressure (Differential) | Range: ±80 mbar Resolution: 0.1 mbar Accuracy: ±0.5% FSD |
| Pre-Programmed Fuels | Natural gas, propane, LPG, light oil, heavy oil, bio oil, pellets |
| Environmental Conditions | Operating temperature: 32 to 113°F (0 to 45°C) Storage temperature: 0 to 113°F (-18 to 50°C) Humidity: 15 to 90% RH |
| Power Supply | Rechargeable batteries, USB charging Battery life: >8 hours (continuous with pump on) |
| Certification | TUV-tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BimSchV) |
| Dimensions | 8.54 x 4.18 x 1.86" (216.92 x 106.17 x 47.24 mm) |
| Weight | 1.51 lbs (0.68 kg) |
Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le UEi C163 Residential/Commercial Combustion Analyzer with differential pressure, 32 to 1112°F, 2000 ppm.
