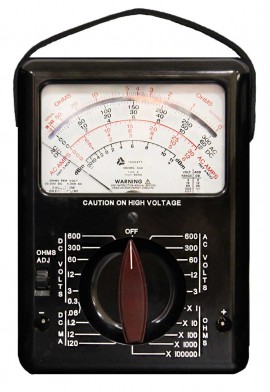

Rugged and compact, the analog multimeter features 28 ranges and measures up to 600 V. With a glass meter window for added chemical resistance and a mirrored scale to reduce parallax error, the multimeter was designed to make fast, accurate measurements on all types of electrical and electronic equipment. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Rugged and compact, the analog multimeter features 28 ranges and measures up to 600 V. With a glass meter window for added chemical resistance and a mirrored scale to reduce parallax error, the multimeter was designed to make fast, accurate measurements on all types of electrical and electronic equipment. Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
With the indicating portion of the meter actuated by a taut band suspension movement, this movement omits conventional pivots, bearings, and hairsprings, it also removes friction between both pivots and bearings. Preventing snaggling and tangling, moving parts are not in contact and the hairspring has been eliminated. Temperature variations will not cause sticky operation of the pointer and the tension spring acts as a built-in shock absorber.
Ce produit comprend un certificat d'étalonnage de traçabilité avec toutes les données et incertitudes.
Features
Applications
| DC Voltage | Range: 0.3 V, 3 V, 12 V, 60 V, 300 V, 600 V Accuracy: ±1.5% FS |
| AC Voltage | Range: 3 V, 12 V, 60 V, 300 V, 600 V Accuracy: ±3% FS |
| DC Current | Range: 0.06 mA, 1.2 mA, 12 mA, 120 mA Accuracy: ±1.5% FS |
| Resistance | Range: 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 100 MΩ Accuracy: ±1.5% |
| Decibels | -20 to +57 dBm |
| Dimensions | 7.5 x 5.88 x 2.25" (190.5 x 149.35 x 57.15 mm) |
| Weight | 3.25 lbs (1.47 kg) |
| DC Voltage | Range: 0.3 V, 3 V, 12 V, 60 V, 300 V, 600 V Accuracy: ±1.5% FS |
| AC Voltage | Range: 3 V, 12 V, 60 V, 300 V, 600 V Accuracy: ±3% FS |
| DC Current | Range: 0.06 mA, 1.2 mA, 12 mA, 120 mA Accuracy: ±1.5% FS |
| Resistance | Range: 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 100 MΩ Accuracy: ±1.5% |
| Decibels | -20 to +57 dBm |
| Dimensions | 7.5 x 5.88 x 2.25" (190.5 x 149.35 x 57.15 mm) |
| Weight | 3.25 lbs (1.47 kg) |
