Monitor the overall conditions of your machines and bearings with this analyzer. The meter analyzes frequencies from 0.2Hz to 1kHz (ISO) and 2Hz to 3kHz.
Monitor the overall conditions of your machines and bearings with this analyzer. The meter analyzes frequencies from 0.2Hz to 1kHz (ISO) and 2Hz to 3kHz.

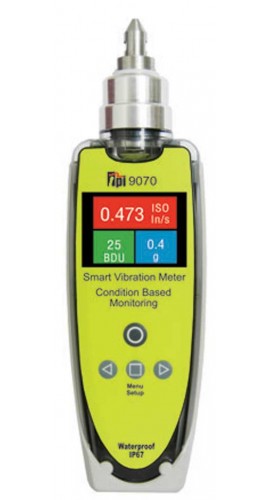

This TPI 9070 Smart Vibration Analyzer makes it easy to monitor the overall condition of machines and bearings by measuring vibrations during operation. By analyzing frequencies from 0.2 Hz to 1 kHz (ISO) and 2 Hz to 3 kHz, the meter can diagnose faults, such as unbalance, misalignment and looseness.
Caractéristiques
Applications
| Frequency Range | 0.2 Hz to 1 kHz (ISO), 2 Hz to 3 kHz |
| Frequency Resolution | 100/200/400/800 lines |
| Water Resistance | IP67 waterproof |
| Display Amplitude Units | g (acceleration), in/s (velocity), BDU (bearing damage) |
| Displayed Frequency Units | Hz, CPM, RPM |
| Input Range | ±50 g |
| Dynamic Range | 72 dB |
| Auto Setup of VA Bands | Yes |
| Accelerometer Connection | Internal sensor |
| RoHS Compliant | Yes |
| UL Listed | Yes |
| CE Compliant | Yes |
| Power Supply | 2 AA batteries |
| Product Width | 2.36" (5.99 cm) |
| Product Height | 7.95" (20.19 cm) |
| Product Weight | 9.8 oz (277.83 g) |
| Manufacturer Warranty | 3-year limited |
| Frequency Range | 0.2 Hz to 1 kHz (ISO), 2 Hz to 3 kHz |
| Frequency Resolution | 100/200/400/800 lines |
| Water Resistance | IP67 waterproof |
| Display Amplitude Units | g (acceleration), in/s (velocity), BDU (bearing damage) |
| Displayed Frequency Units | Hz, CPM, RPM |
| Input Range | ±50 g |
| Dynamic Range | 72 dB |
| Auto Setup of VA Bands | Yes |
| Accelerometer Connection | Internal sensor |
| RoHS Compliant | Yes |
| UL Listed | Yes |
| CE Compliant | Yes |
| Power Supply | 2 AA batteries |
| Product Width | 2.36" (5.99 cm) |
| Product Height | 7.95" (20.19 cm) |
| Product Weight | 9.8 oz (277.83 g) |
| Manufacturer Warranty | 3-year limited |
