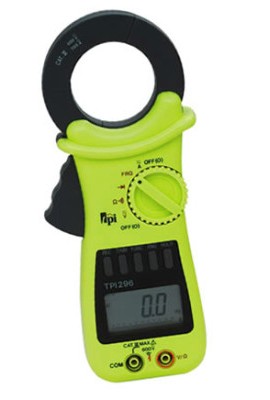

TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A

Modèle: 296 | CUP: 637623002960

TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A-

Télécharger: datasheet manual

Plus de produits TPI

Demander à un expert

TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A

Modèle: 296 | CUP: 637623002960

Provides accurate and dependable readings of non-linear loads with true RMS. Features automatic and manual readings.

Provides accurate and dependable readings of non-linear loads with true RMS. Features automatic and manual readings.

Prix spécial $244.22 CAD
Prix régulier $271.36 CAD
Disponibilité 5 à 6 semaines
Quantité

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 296 Digital Clamp Meter with Digital Multimeter Functions

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 296 Digital Clamp Meter with Digital Multimeter Functions

Accessoires recommandées

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters-

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters

A771

TPI 296 Offers

Features

  • In HDR mode you can determine if a signal is clean or distorted
  • When measuring frequency the bar graph indicates current level
  • TRIM Mode smooths out unstable readings
  • Peak mode: for start-up and inrush currents
  • Sleep mode helps preserves the battery life
  • Data hold can hold the reading on the display
  • CAT III 600 V rated
  • cULus 61010
  • 3-year limited warranty

Applications

  • Heat anticipator current in thermostats
  • Line voltage
  • Control circuit voltage
  • Heating element resistance
  • Compressor winding resistance
  • Contactor and relay coil resistance
  • Motor and compressor start up current
  • Continuity of wiring
  • Frequency on control and line voltage
  • Record/Min/Max voltage of controls and line voltages
  • Bar graph to indicate rapid fluctuations

TPI 296 Specifications

Range Selection Auto/Manual
Display Specifications 4,000 Count
Analog Bar Graph
Basic DC Accuracy 0.75%
AC/DC Voltage 600 V
Resolution 0.01 V
AC/DC Amps 700 A
Resolution 0.01 A
Agency Approval CEIEC 1010: CATIII; 600V cULus 61010
Overall Dimensions 1.5 x 7.25 x 2.5" (40 x 190 x 65 mm)
Weight 315 g (11.1 oz)
Cliquer ici pour toutes les spécifications du TPI 296

What's included with the TPI 296

  • Clamp Meter
  • Test Lead Set
  • Carrying Case
  • Battery
  • Instruction Manual

TPI 296 Digital Clamp Meter

datasheet pour le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A manual pour le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A.

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters A771
Use alongside your DMM and measure the atmospheres air CO.



Poser une question sur le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A

TPI 296 Offers

Features

  • In HDR mode you can determine if a signal is clean or distorted
  • When measuring frequency the bar graph indicates current level
  • TRIM Mode smooths out unstable readings
  • Peak mode: for start-up and inrush currents
  • Sleep mode helps preserves the battery life
  • Data hold can hold the reading on the display
  • CAT III 600 V rated
  • cULus 61010
  • 3-year limited warranty

Applications

  • Heat anticipator current in thermostats
  • Line voltage
  • Control circuit voltage
  • Heating element resistance
  • Compressor winding resistance
  • Contactor and relay coil resistance
  • Motor and compressor start up current
  • Continuity of wiring
  • Frequency on control and line voltage
  • Record/Min/Max voltage of controls and line voltages
  • Bar graph to indicate rapid fluctuations
En savoir plus...

TPI 296 Specifications

Range Selection Auto/Manual
Display Specifications 4,000 Count
Analog Bar Graph
Basic DC Accuracy 0.75%
AC/DC Voltage 600 V
Resolution 0.01 V
AC/DC Amps 700 A
Resolution 0.01 A
Agency Approval CEIEC 1010: CATIII; 600V cULus 61010
Overall Dimensions 1.5 x 7.25 x 2.5" (40 x 190 x 65 mm)
Weight 315 g (11.1 oz)
Cliquer ici pour toutes les spécifications du TPI 296

What's included with the TPI 296

  • Clamp Meter
  • Test Lead Set
  • Carrying Case
  • Battery
  • Instruction Manual

TPI 296 Digital Clamp Meter

datasheet pour le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A manual pour le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A.

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters A771
Use alongside your DMM and measure the atmospheres air CO.



Poser une question sur le TPI 296 Digital Clamp Meter with Digital Multimeter Functions, DC 600V/AC 700A
