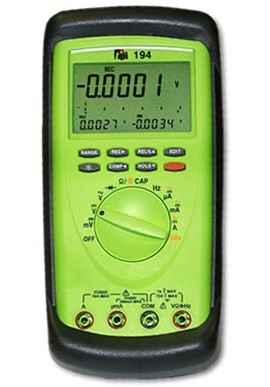

TPI 194 True RMS Digital Multimeter, 10A

Modèle: 194 | CUP: 637623001949

TPI 194 True RMS Digital Multimeter, 10A-

Télécharger: datasheet manual

Plus de produits TPI

Demander à un expert

TPI 194 True RMS Digital Multimeter, 10A

Modèle: 194 | CUP: 637623001949

With it's triple display viewing multiple events at once makes comparing the minimum and maximum values easy!

With it's triple display viewing multiple events at once makes comparing the minimum and maximum values easy!

Prix spécial $405.95 CAD
Prix régulier $451.05 CAD
Disponibilité 1 Semaine
Quantité

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 194 True RMS Digital Multimeter

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 194 True RMS Digital Multimeter

Accessoires recommandées

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters-

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters

A771

TPI 194 Offers

Features

  • Data logging
  • 50,000 count display
  • 0.05% DCV basic accuracy
  • Inductance, Frequency and Capacitance
  • 0 to 750 ACV; max resolution 100uV
  • 0 to 1,000 DCV: max resolution 0.001mV
  • 0 to 50MΩ; max resolution 0.01Ω
  • Audible continuity
  • AC/DC amps up to10 amps; resolution 0.01 uA
  • Analog bar graph
  • cULus 61010-1
  • CATIII-1000VC, CATIII-1000V, CAT IV-600V, CAT III 1000V
  • Records Min/Max

Applications

  • Thermocouples in furnaces or gas applications
  • Heat anticipator current in thermostats
  • Line voltage
  • Control circuit voltage
  • Flame safeguard control current
  • Heating element resistance (continuity)
  • Compressor winding resistance
  • Contractor and relay coil resistance
  • Continuity of wiring
  • Motor start and run capacitance
  • Frequency on controls and line voltages
  • Record min/max voltage of controls and line voltages
  • Temperature with optional temperature adapter (A310)
  • Bar graph to indicate rapid fluctuations in measurements
  • Voltage of direct drive DC motors
  • Measure power supply voltage
  • Match components
  • Compare readings in circuits and components
  • Frequency of line and control voltage

TPI 194 Specifications

DC Volts Maximum Input: 1000V
Maximum Resolution: 0.0001mV
Accuracy: ±0.05%
AC Volts Maximum Input: 1000V
Maximum Resolution: 100μμV
Accuracy: ±0.4%
DC Amps Maximum Input: 10A
Maximum Resolution: 0.01μA
Accuracy: ±0.15%
AC Amps Maximum Input: 10A
Maximum Resolution: 0.01μA
Accuracy: ±0.75%
Resistance (Ohms) Maximum Input: 50MΩ
Maximum Resolution: 1mΩ
Accuracy: ±0.05%
Frequency Maximum Input: 5MHz
Maximum Resolution: 0.001Hz
Accuracy: ±0.05%
Capacitance Maximum Input: 20mF
Maximum Resolution: 0.01nF
Accuracy: ±2%
Inductance Maximum Input: 300mH
Maximum Resolution: 0.01mH
Accuracy: ±5%
Temperature

(K-Type Thermocouple)

Maximum Input: -54 to 2462°F (-50 to 1350°C)
Maximum Resolution: 0.1°F/°C
Accuracy: ±2%
Continuity Audible at less than 10Ω
Diode 3V at 1mA maximum output
Duty Cycle Maximum Input: 99.9%
Maximum Resolution: 0.1%
True RMS Responding Yes
Conductance Yes
Pulse Width Yes
Data Hold Yes (Two hold system)
Min/Max Record Yes
Time Stamp Logging Yes
Relative Mode Yes
Compare Mode Yes
RS-232 Output Yes, Optically Isolated
Process Loop Output No
Sleep Mode / Auto Off Yes
Protective Boot Yes (standard)
Display Type 50,000 count backlit LCD with dual sub displays and analog bargraph
Range Selection Auto/Manual
Operating Temperature 32 to 113°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Humidity 80% non-condensing
Size 8.3" x 3.7" x 1.9" (210mm x 95mm x 47mm) without boot
8.7" x 4.3" x 2.6 (220mm x 110mm x 65mm) with boot
Weight 1.3lbs (570g) without boot
1.9lbs (850g) with boot
Battery Type 9V Alkaline (NEDA 1604)
Battery Life 50hrs Typical
OverInput Category CAT III 600V
Agency Approval cULus 61010-1, IEC 61010-1
Warranty Limited Lifetime
Cliquer ici pour toutes les spécifications du TPI 194

What's Included with the TPI 194

  • TPI 194 Digital Multimeter
  • Rubber Boot
  • Fuse 0.5A
  • Fuse 1oA
  • Test Lead Set
  • 9 Volt Alkaline Battery
  • Instruction Manual

TPI 194 True RMS Digital Multimeter: Overview


In this video, the viewer will receive information on the True RMS digital multimer's key features. Additionally, this tool's triple display enables the user to view multiple events at once.
datasheet pour le TPI 194 True RMS Digital Multimeter, 10A manual pour le TPI 194 True RMS Digital Multimeter, 10A

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le TPI 194 True RMS Digital Multimeter, 10A.

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters A771
Use alongside your DMM and measure the atmospheres air CO.
