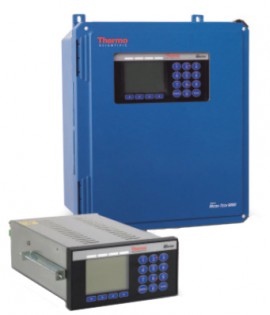

Monitor production output, control product load-out, and track inventory to manage the process effectively and efficiently, this premium belt scale integrator incorporates advanced electronic design for improved performance and serviceability. Support specific software versions for a variety of weighing and monitoring products.
Monitor production output, control product load-out, and track inventory to manage the process effectively and efficiently, this premium belt scale integrator incorporates advanced electronic design for improved performance and serviceability. Support specific software versions for a variety of weighing and monitoring products.
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n'y a aucune option de remplacement.
Nous pouvons vous aider à trouver ce dont vous avez besoin:
State of the art LCD graphic display with four-line display.
Features
Applications
| Communications | Communication Protocols Profibus-DP Ethernet: Ethernet/IP and Modbus/TCP Built-in USB Port Configuration and data storage Expansion Options, (5) Slots: Optional 4 to 20 mA Out Board (0 to 20 mA or 4 to 20 mA); available in single channel or dual channel Optional Input/Output Expansion Boards: Relay output board (4 outputs); Opto-22 output board (4 outputs); DC input board (3 inputs); Opto-22 input board (3 inputs) Optional Digital Input/Output Board (8 inputs/8 outputs) Optional Analog Input/Output Board (2 inputs/2 outputs) Profibus Board or Standard Comms Board |
| Certifications/Compliance | cCSAus, CE approved; SIL-2, Tick Mark, GOST, NTEP |
| USB Port | Yes |
| Environmental Conditions | Operating Temperature -4 to 140°F (-20 to 60°C) |
| Instrument Front | 3.03 x 2.28" (77 x 58 mm) viewable LCD graphic display for easy reading, continuous backlit for ease of viewing indoors and outdoors; Available menu languages include English, German, Italian and Spanish |
| Material | Reinforced fiberglass housing, NEMA 4X, IP66, dust and watertight |
| Outputs | One open collector for pulse output (default) or alarms |
| Power Consumption | 50 VA maximum Nominal Voltage: 100 to 240 VAC Nominal Frequency: 50/60 Hz |
| Power Supply | Nominal Voltage: 100 to 240 VAC Nominal Frequency: 50/60 Hz Power Consumption 50 VA maximum Load Cell Excitation Power Supply 5 VDC 10%, 90 mA, minimum load impedance (58 ohms) |
| Serial Communication Board | Standard Serial Interface: RS-232C provides support for modem; RS-485, 2- and 4-wire multi-drop |
| Temperature Sensitivity | 0.5 to 3.5 m V/V (keyboard selectable) |
| Communication Ports | USB, Ethernet, RS-232C, RS-485, 2- and 4-wire multi-drop, additional expansion options |
| Display Type | LCD |
| Communications | Communication Protocols Profibus-DP Ethernet: Ethernet/IP and Modbus/TCP Built-in USB Port Configuration and data storage Expansion Options, (5) Slots: Optional 4 to 20 mA Out Board (0 to 20 mA or 4 to 20 mA); available in single channel or dual channel Optional Input/Output Expansion Boards: Relay output board (4 outputs); Opto-22 output board (4 outputs); DC input board (3 inputs); Opto-22 input board (3 inputs) Optional Digital Input/Output Board (8 inputs/8 outputs) Optional Analog Input/Output Board (2 inputs/2 outputs) Profibus Board or Standard Comms Board |
| Certifications/Compliance | cCSAus, CE approved; SIL-2, Tick Mark, GOST, NTEP |
| USB Port | Yes |
| Environmental Conditions | Operating Temperature -4 to 140°F (-20 to 60°C) |
| Instrument Front | 3.03 x 2.28" (77 x 58 mm) viewable LCD graphic display for easy reading, continuous backlit for ease of viewing indoors and outdoors; Available menu languages include English, German, Italian and Spanish |
| Material | Reinforced fiberglass housing, NEMA 4X, IP66, dust and watertight |
| Outputs | One open collector for pulse output (default) or alarms |
| Power Consumption | 50 VA maximum Nominal Voltage: 100 to 240 VAC Nominal Frequency: 50/60 Hz |
| Power Supply | Nominal Voltage: 100 to 240 VAC Nominal Frequency: 50/60 Hz Power Consumption 50 VA maximum Load Cell Excitation Power Supply 5 VDC 10%, 90 mA, minimum load impedance (58 ohms) |
| Serial Communication Board | Standard Serial Interface: RS-232C provides support for modem; RS-485, 2- and 4-wire multi-drop |
| Temperature Sensitivity | 0.5 to 3.5 m V/V (keyboard selectable) |
| Communication Ports | USB, Ethernet, RS-232C, RS-485, 2- and 4-wire multi-drop, additional expansion options |
| Display Type | LCD |
