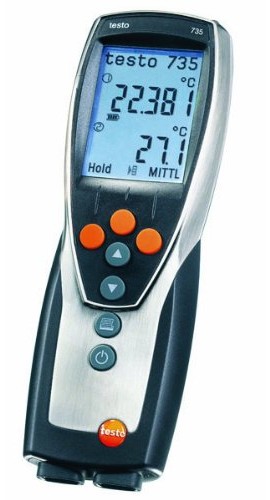

Testo 735-1 3-Channel RTD/Thermocouple Thermometer

Modèle: 735-1 | No. de commande: 0560 7351 | CUP: 4029547004384

Télécharger: datasheet manual

Testo 735-1 3-Channel RTD/Thermocouple Thermometer

Modèle: 735-1 | No. de commande: 0560 7351 | CUP: 4029547004384

Highly versatile, multi-channel thermometer with logging ability and location management. A wide range of optional probes available.

Prix spécial	$803.32 CAD
Prix régulier	$1064.00 CAD
Disponibilité	2 à 3 semaines
Quantité	Quantity

Certificat d’étalonnage de traçabilité pour votre 0560 7351

Oui, je voudrais ajouter un Certificat d’étalonnage de traçabilité (Modèle CERTITM1) pour seulement $160.00 CAD

Certificat d’étalonnage de traçabilité pour votre 0560 7351

Oui, je voudrais ajouter un Certificat d’étalonnage de traçabilité (Modèle CERTITM1) pour seulement $160.00 CAD

Accessoires recommandées

Testo 0613 1712 Air Probe for Refrigeration System Analyzer

0613 1712

Testo 0554 0549 Imprimante infrarouge avec 1 rouleau de papier

0554 0549

Testo 0609 1273 Waterproof Immersion/Penetration Probe, RTD

0609 1273

Testo 0602 4892 10N Magnetic Probe for High Temperatures, Type K TC

0602 4892

Testo 0613 4611 Pipe Wrap Probe for Refrigeration System Analyzer

0613 4611

Testo 0602 2394 Surface Probe, Flat Tip, Type K TC w/ Telescopic Handle

0602 2394

Testo 735-1 Offers

When fully equipped, three radio probes and three attachable probes can be registered and displayed. For classical probes with a wire, there are two inputs available for fast thermocouple probes (Type K/T) and one input for high precision Pt100 probes.

Please note: You will need a sensor to use your meter. Select from a wide range of optional sensors. The accuracy of your measurements depends on the accuracy of the sensors and the meter.

Features

System accuracy up to 0.05°C
Highest precision over the entire measuring range thanks to system adjustment
Storage of single measurements or measurement series by location
Print out on site with optional printer
Connections for 3 attachable probes and three radio probes
Limit values alarm
Display of Delta T, min/max, and mean values
Illuminable display
Protection type IP 54

Testo 735-1 Specifications

Temperature - Pt100
Measuring Range	-200 to 800°C
Accuracy	±0.2°C (-100 to 199.9°C) ±0.2 % of mv (Remaining Range)
Resolution	0.05°C
Temperature - TC Type K (NiCr-Ni)
Measuring Range	-200 to 1370°C
Accuracy	±0.3°C (-60 to 60°C) ±(0.2°C + 0.3 % of mv) (Remaining Range)
Resolution	0.1°C
Temperature - TC Type T (Cu-CuNi)
Measuring Range	-200 to 400°C
Accuracy	±0.3°C (-60 to 60°C) ±(0.2°C + 0.3 % of mv) (Remaining Range)
Resolution	0.1°C
Temperature - TC Type J (Fe-CuNi)
Measuring Range	-200 to 1000°C
Accuracy	±0.3°C (-60 to 60°C) ±(0.2°C + 0.3 % of mv) (Remaining Range)
Resolution	0.1°C
Temperature - TC Type S (Pt10Rh-Pt)
Measuring Range	0 to 1760°C
Accuracy	±1°C (0 to 1760°C)
Resolution	1°C
General Specifications
Dimensions	220 x 74 x 46 mm
Operating Temperature	-20 to 50°C
Housing	ABS / TPE / Metal
Protection Class	IP65
Standards	EN 13485
Battery Type	Alkali Manganese, Mignon, Type AA
Storage Temperature	-30 to 70°C
Weight	428 g

Cliquer ici pour toutes les spécifications du Testo 735-1

What's included with the Testo 735-1

3-Channel RTD/Thermocouple Thermometer
Calibration Protocol
Batteries

datasheet pour le Testo 735-1 3-Channel RTD/Thermocouple Thermometer manual pour le Testo 735-1 3-Channel RTD/Thermocouple Thermometer

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Testo 735-1 3-Channel RTD/Thermocouple Thermometer.

Air Temperature Probes

Testo 0603 1793 Air Probe, Type T TC 0603 1793

Includes handle and 3.9' cable. For use with type T Thermometers.

Testo 0613 1712 Air Probe for Refrigeration System Analyzer 0613 1712

Efficient and robust NTC air probe with 3.9' cable.

Testo 0602 1793 Sonde d'air, 4mm x 115mm L 0602 1793

T/C type K, mesure -60 à 400°C, avec câble fixe.

Bead Tip Probes

Testo 0602 0644 Flexible Bead Tip Probe, 32", Type K TC 0602 0644

Thermocouple with T/C adapter and fiber glass sheating. Class 2 accuracy.

Testo 0602 0645 Flexible Bead Tip Probe, 60", Type K TC, Fiberglass 0602 0645

Thermocouple with T/C adapter and fibre glass sheathing. Class 2 accuracy.

Testo 0602 0646 Flexible Bead Tip Probe, 60", Type K TC, PTFE 0602 0646

Thermocouple with T/C adapter and flexible teflon sheath. Class 2 accuracy.

Black Globe Probes

Testo 0602 0743 Black Globe Probe, 6" dia., Type K TC 0602 0743

Adjustment time approx 30 min.

Communications

Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568

For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.

Testo 0554 0549 Imprimante infrarouge avec 1 rouleau de papier 0554 0549

Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.

Testo 0554 0190 Module sans fil 0554 0190

Radio frequency of 915.00 MHz FSK. For use with the 435, 556, 560, 635, 735, 925, and 926 wireless instruments.

Food Temperature Probes

Testo 0613 3211 Frozen Food Probe w/ T-handle, NTC 0613 3211

Corkscrew tip design for easier penitration on frozen food.

Testo 0603 2192 Sonde alimentaire en acier inoxydable 0603 2192

IP67 Stainless Steel probe with PUR cable. For use with Type T Thermometers.

Testo 0603 2492 Sonde de pénétration alimentaire robuste 0603 2492

Rugged food penetration probe with easy-grip handle for desnser foodstuffs. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.

Testo 0603 3292 Sonde en tire-bouchon pour aliment congelé 0603 3292

Corkscrew tip design for easier penitration on frozen food.

Testo 0603 3392 Sonde alimentaire en acier inoxydable 0603 3392

Accurate IP67 waterproof food probe. Includes a Teflon cable.

Testo 0613 1052 Sonde en tire-bouchon, 3.5" 0613 1052

Corkscrew tip design for easier penitration on frozen food. For use with the 105 Hand-Held T-Bar Thermometer.

Testo 0613 2211 Penetration Probe for Food, SS, NTC 0613 2211

IP65 stainless steel features a PUR cable. Probe can be used up to 176°F. Includes a IP54 plug-in connection.

Testo 0613 3311 Food Probe, SS, NTC 0613 3311

IP67 stainless steel, with Teflon cable. Resistant to temperatures up to 392°F (short-term to 482°F).

Testo 0602 2492 Waterproof Food Penetration Probe, Type K TC 0602 2492

Rugged food penetration probe with easy-grip handle for desnser foodstuffs. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.

Testo 0602 2292 Waterproof Food Probe, SS, Type K TC 0602 2292

TC type K stainless steel (IP65) waterproof food probe.

Immersion & Penetration Probes

Testo 0603 1293 Sonde d'immersion/pénétration étanche 0603 1293

Includes handle and 46" cable. For use with type T Thermometers.

Testo 0602 2693 Waterproof Immersion/Penetration Probe, Type K TC 0602 2693

Super-quick, waterproof immersion/penetration probe. Calibration not available for temperatures over 300°C.

Testo 0609 1273 Waterproof Immersion/Penetration Probe, RTD 0609 1273

Rugged, waterproof PT100 plug-in probe.

Testo 0602 1293 Sonde d'immersion / pénétration, è5mm x 114mm L 0602 1293

étanche à l'eau, T/C type K et une gamme de -60 à 400°C.

Immersion Probes

Testo 0602 5792 Flexible Immersion Probe, 20", Type K TC 0602 5792

20" flexible thermocouple probe.

Testo 0602 0593 Waterproof Immersion Probe, Type K TC 0602 0593

Efficient and fast-action. Includes a 1.2m cable and Type K mini plug connector.

Testo 0602 0493 Flexible, Low-mass Immersion Probe, Type K TC 0602 0493

Flexible, low-mass immersion measurement tip. Ideal for measurements in small volumes such as petri dishes or for surface measurements (e.g. attached with adhesive tape).

Magnetic Temperature Probes

Testo 0602 4892 10N Magnetic Probe for High Temperatures, Type K TC 0602 4892

Magnet has 10N (approx 2.2 lbs) of holding force on a ferrous metal. For High Temperature applications.

Testo 0602 4792 20N Magnetic Probe, Type K TC 0602 4792

Magnet has 20N (approx 4.5 lbs) of holding force on a ferrous metal.

Penetration Probes

Testo 0628 0026 Waterproof Penetration Probe, Needle Tip, Type K TC 0628 0026

Penetration hole is not visible. Specially designed for for food, being ideal for hamburgers, steaks, pizza, eggs etc.

Testo 0613 2411 Penetration Probe w/ T-handle, NTC 0613 2411

Robust food penetration probe with easy grip handle. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.

Testo 0613 1053 Sonde pour mesure extra-longue, 7.75" 0613 1053

Long tip design for deep temperature measurements. For use with the 105 Hand-Held T-Bar Thermometer.

Testo 0613 1051 Thermomètre pour aliments congelés 0613 1051

Sondes interchangeables pour une variété d'applications de mesure de la température des aliments. Alarme pour température s élevées ou basses au gré de l'utilisateur qui procure une alarme sonore et visuelle lorsqu'un seuil critique est dépassé.

Testo 0602 0293 Air/Immersion/Penetration Probe for Wireless Handle, Type K TC 0602 0293

Probe head for air, immersion, and penetration measurements.

Pipe Clamp Temperature Probes

Testo 0628 0020 Pipe Wrap Probe w/ Velcro, 5" max. dia., Type K TC 0628 0020

Pipe probe with Velcro. For 5" pipe diameters.

Testo 0602 0092 Replacement Head for Pipe Clamp Probe 0602 0092

Spare measuring TC head for the 0602 4592 Pipe Clamp Probe.

Testo 0613 4611 Pipe Wrap Probe for Refrigeration System Analyzer 0613 4611

Pipe probe with Velcro. For 3" pipe diameters.

Testo 0613 5505 Clamp Probe for Refrigeration System Analyzer 0613 5505

Clamp fits to 1/4 to 1-1/3" pipes. Features a Measuring range of -40 to +125 °C. For use with the 549, 550, 557, and 570.Clamp fits to 1/4 to 1-1/3" pipes. For use with the 549, 550, 557, and 570.

Testo 0602 4592 Sonde pour tuyau de 0.02 à 2.6" de diamètre 0602 4592

Sonde de température avec étrier de fixation pour les mesures de température sur des tuyaux, avec temps de réponse rapide. Comprend une tête de mesure remplaçable.

Testo 0602 4692 Sonde à pince pour mesurer la température 0602 4692

Tuyaux de 0.6 à 1" de diamètre. Gamme: -58 à 212°F. TC type K.

Surface Temperature Probes

Testo 0602 2394 Surface Probe, Flat Tip, Type K TC w/ Telescopic Handle 0602 2394

Measure hard-to-reach areas with the 24 inch telescopic handle. Useful for HVAC/R applications.

Testo 0602 0993 Sonde de surface à angle de 90°, type K TC 0602 0993

Sonde de surface à action rapide avec thermocouple à ressort pour les surfaces inégales. Court terme jusqu'à 932 °F.

Testo 0602 0193 Paddle Surface Probe, Type K TC 0602 0193

Fast-reaction paddle surface probe, for measurements in inaccessible places, like narrow apertures and slots. For use with the 845.

Testo 0602 0393 Sonde de surface avec thermocouple à ressort, type K 0602 0393

La sonde de température de contact (thermocouple de type K) est dotée d'une bande thermocouple garantissant un temps de réaction rapide et permettant des mesures sur les surfaces irrégulières. Elle a une gamme de -76 à 572°F (-60 à 300°C).

Testo 0603 1993 Waterproof Surface Probe, Flat Tip, Type T TC 0603 1993

Waterproof surface probe with widened measurement tip for flat surfaces. For use with Type T Thermometers.

Testo 0602 0394 Tête de sonde de température de surface enfichable 0602 0394

T/C type K. Vous devez acheter poignée radio.

Testo 0602 0693 Surface Probe, 0.1" dia. Tip, Type K TC 0602 0693

Efficient, waterproof surface probe with small measurement head for flat surfaces.

Testo 0602 1993 Waterproof Surface Probe, Flat Tip, Type K TC 0602 1993

Widenend measurement tip for flat surfaces.

Testo 0613 1912 Surface Probe for Refrigeration System Analyzer 0613 1912

Waterproof NTC surface probe for measurements on flat surfaces.

Temperature Probes

Testo 0628 0023 Measuring Tip w/ TC Plug, Type T TC 0628 0023

Flexible incoming goods probe, ideal for quick temperature measurements on incoming goods.

Testo 0603 0646 Thermocouple avec prise de type T 0603 0646

Flexible oven probe with a PTFE cable. Tmax 250°C.
