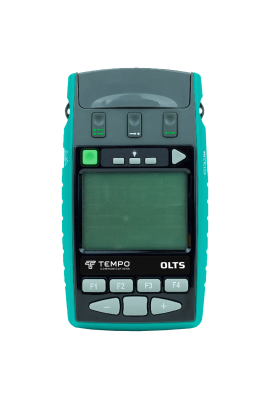

This is a compact two-way optical loss and length tester with integrated VisiTester, designed for singlemode fiber testing at 1310, 1490, 1550, and 1625 nm. Featuring APC connectors, high dynamic range, and real-time pass/fail display, it is ideal for broadband, telecom, and PON network certification.
This is a compact two-way optical loss and length tester with integrated VisiTester, designed for singlemode fiber testing at 1310, 1490, 1550, and 1625 nm. Featuring APC connectors, high dynamic range, and real-time pass/fail display, it is ideal for broadband, telecom, and PON network certification.
Caractéristiques
| Source Wavelengths | 1310, 1490, 1550, 1625 nm Laser |
| Output Power | -7 dBm (typical, SMF) |
| Power Meter Detector | InGaAs |
| Response Wavelength | 600 and 1700 nm |
| Calibration Wavelengths | 820, 850, 980, 1270, and 1650 nm (25+ λ) |
| Power Range | +10 to -70 dBm |
| Tone and Autotest Sensitivity | -50 dBm |
| Midrange Linearity | 0.04 dB (typical) |
| Calibration Accuracy | 1% (0.06 dB) |
| Polarization Sensitivity | <0.05 dB (APC) |
| Total Uncertainty | 0.3 dB |
| Two-Way Loss Range | 41 dB (SMF) |
| Length Accuracy | 0.01% ± 4 m |
| Length Resolution | 1 to 100 m (depending on range) |
| ORL Measurement | Integrated with Autotest 0 to >60 dB range |
| VisiTester Wavelength | 650 ±5 nm (standalone red laser) |
| Display | 2.9 x 2.2" (74 x 55 mm) sunlight-readable LCD |
| Memory | 10,000 fibers Unlimited with USB key |
| Battery Life | Up to 80 hours (typical) |
| Battery Type | 2 × AA alkaline NiMH rechargeable via USB |
| Temperature | Operating: 5 to 131°F (-15 to 55°C) Storage: -13 to 158°F (-25 to 70°C) Humidity: 0 to 95% RH |
| Warranty | 3 years |
| Dimensions | 7.5 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.93 lbs (420 g) |
