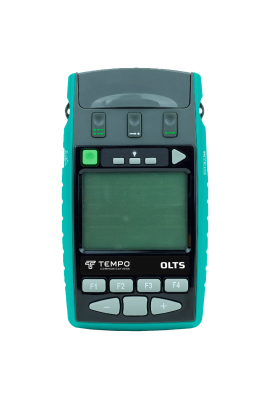

A Two-Way Optical Loss Test set (OLTS) that's perfect for medium to ultra-high fiber count loss, length, and optical return loss testing applications on single-mode fiber at 1310 and 1550 nm. A pair of these compact instruments set new standards of productivity, accuracy, and ease of use.
A Two-Way Optical Loss Test set (OLTS) that's perfect for medium to ultra-high fiber count loss, length, and optical return loss testing applications on single-mode fiber at 1310 and 1550 nm. A pair of these compact instruments set new standards of productivity, accuracy, and ease of use.
The 650 nm VFL Visitester feature mixes a VFL in with the test signal during Autotest. In addition to operating as a typical VFL, it gives positive visual identification of a fiber to be connected for loss testing.
Each SM fiber needs just one test hook-up and one key press for a complete 2 W and bidirectional loss, length, and ORL test, eliminating administration, training, and test errors. Testing is accurate and can take only 5 seconds, directly onto flexible standards-compliant Tier 1 certification reports.
A pair of instruments both display length bi-directional loss, and ORL fiber testing at each end, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone ultra-stable light source and power meter, VFL, ORL meter, or tone generator/detector.
ORL sensitivity on this model is typically adequate for installed cable testing, but is limited by the PC connector. For best ORL sensitivity, select a model with an APC connector.
Caractéristiques
| Source | |
| Modulated Output | 270 Hz, 1 kHz, 2 kHz ±2%, 12 Multi-Fiber ID tones |
| Output Wavelength | 1310 and 1550 nm Laser VisiTester |
| Output Power | -7 dBm ±1 dB at SMF |
| Adjust Output Power | Adjustable over 7 dB in 0.01 dB steps |
| Short Term Stability | For 15 minimum, Typical ±2°C, After warm up, ORL < -25 dB:
|
| Stability Over Temperature | 0.2 dB maximum |
| Wavelength Drift | Typically 0.4 nm per °C |
| Wavelength Initial Tolerance | 20 nm at 25°C |
| Spectrum Width | Typically 3 nm at FWHM |
| Reconnection Repeatability | 0.1 dB at 95% Confidence |
| 2-way Autotest Only | |
| Length Range | 27 dB |
| Length Accuracy | 0.01% ±4 m |
| 2-way Autotest | |
| Length Resolutions | 1 m (0.000 to 9.999 Km) 10 m (10.00 to 99.99 Km) 100 m (100.0 to 127.9 Km) |
| Loss Range | 44 dB |
| Loss Repeatability and Loss Linearity | 0.04 dB |
| 1-way Autotest | |
| Loss Range | 44 dB |
| Loss Repeatability and Loss Linearity | 0.04 dB |
| Manual | |
| VisiTester Blink Rate | CW or 2 Hz |
| Meter | |
| Detector Type | InGaAs |
| Response Wavelength | 600 and 1700 nm |
| Calibration Wavelengths | 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm |
| Accuracy | 1% (0.06 dB) |
| Mid-range Linearity | Typically 0.04 dB |
| Power Range | 10 to -60 dBm (780 and 980, and 1590 and 1650 nm) 10 to -70 dBm (1270 and 1650 nm) |
| Total Uncertainty | 0.3 dB maximum |
| Resolution | 0.01 dB |
| Polarization Sensitivity | Typically <0.05 dB |
| ID Tone Detection and Autotest Sensitivity | Up to -50 dBm |
| Tone Detection | 150 to 9999 Hz ±1% |
| Orl Range | 0 to >60 dB |
| Orl Port Isolation | >60 dB |
| Orl Accuracy | 0.2 dB |
| Orl Resolution | 0.01 dB (at 0 to 50 dB) 0.1 dB (at 50 to 65 dB) |
| VisiTester Wavelength | 650 ±5 nm |
| VisiTester Power | 0 dBm ±1 dB at SMF |
| VisiTester Laser Safety | Class 1 IEC60825-2 |
| Autotest | 1-way: Compatible with other T23400 and T27400 models 2-way: Compatible with identical model only |
| USB Interfaces | USB-micro for power and software USB-A for memory key |
| Software | KITS - free download |
| Power | Battery External power via USB |
| Battery Life | Laser and LED source: Typically 80 hours in Autotest Power Meter: Typically 1000 hours |
| Battery Type | 2 x AA (LR6) Alkaline 2 x AA NiMH AA (rechargeable via USB) |
| Auto Off | Selectable |
| Display | 2.9 x 2.2" (74 x 55 mm) high contrast LCD |
| Case | Polycarbonate body Rubber edges and corners Moisture resistance 1 m drop tested |
| Memory | For 8000 fibers Unlimited on USB |
| Temperature | Operating temperature: 5 to 131°F (-15 to 55°C) Storage temperature: -13 to 158°F (-25 to 70°C) |
| Relative Humidity | 0 to 95% |
| Warranty | 3 years |
| Calibration Validity ISO/IEC 17025 | 3 years |
| Dimensions | 7.4 x 4.1 x 1.4" (190 x 105 x 35 mm) |
| Weight | 0.93 lbs (0.42 kg) |
| Shipping Weight | 3.3 lbs (1.5 kg) |
