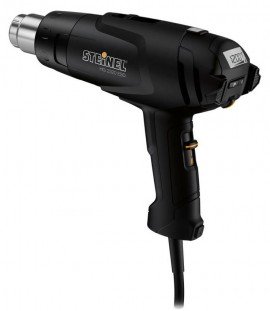

Built with an LCD screen for optimal convenience, with precision temperature control between 120 and 1200°F (49 and 649°C), a residual heat indicator, and four programmable settings, this ESD-protected heat gun is the ultimate tool for safely working in electrostatic-protected areas (EPA).
Built with an LCD screen for optimal convenience, with precision temperature control between 120 and 1200°F (49 and 649°C), a residual heat indicator, and four programmable settings, this ESD-protected heat gun is the ultimate tool for safely working in electrostatic-protected areas (EPA).
ESD (electrostatic discharge) occurs when two objects with differing electric potential (due to either their charge or static induction) make contact. In addition, contact of this nature can cause product defects and equipment failures, so this heat gun has a conductive housing that will not build up or hold a static charge when used in EPA (electrostatic protected areas).
Caractéristiques
Setting temperature
Set to display temperature in °F with factory settings, this professional heat gun has a cooling and heating stage. Stage 1 is the cooling stage, where the temperature is always 120°F. Use the cooling function for drying paint, cooling workpieces, or cooling the nozzle before changing the accessory attachment. Stage 2 allows the temperature to be continuously variable over a range of 120 to 1200°F, displayed on the LCD control panel. The actual temperature is measured at the nozzle outlet and indicated on the display. The toggle is an input button with a plus/minus function. Briefly pressing the "+/-" toggle increases or reduces the temperature in 10° steps. Keeping the toggle pressed speeds up the temperature setting process.
After setting the temperature, the tool takes a few seconds to reach the assigned temperature (depending on speed/airflow). The set temperature will be shown on the display for 3 seconds, followed by the display showing the current actual temperature of the heat gun. The "°F/°C" symbol will flash until it reaches the selected temperature. To alter the setting, press the toggle again to increase or reduce the temperature. After switching off, the hot air tool stays on the last temperature setting.
Double insulated tools
Tools marked with the words "Double Insulated" come equipped with a two-prong plug. These tools have an insulation system that complies with applicable UL standards, meaning they do not require grounding. "Double Insulated" tools, like this one, have two-prong cords and can use either a two or three-prong extension cord.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug fits in a polarized outlet only one way. If the plug does not fully fit in the outlet, reverse the plug. If it still does not work, contact a qualified electrician. Do not modify the plug in any way.
Setting airflow rate
First, press the "airflow" button: this will cause the fan button to flash, meaning the toggle can now set the airflow rate. The airflow rate setting mode automatically disengages if the airflow rate setting does not change within five seconds. Pressing the airflow button again after setting the airflow rate closes the airflow rate setting mode. The airflow rate can be varied from a minimum of 3.6 to a maximum of 17.6 CFM (± 0.5 CFM).
Programming mode [P]
Besides normal operating mode, this heat gun has four factory-set programs for the most common jobs. Press the "P" button to access programming mode. The number 1 is for program 1, and continuing to press the program button cycles through programs 2 to 4. Pressing the button again will return the tool to standard operation. See Preset Programs in the Specifications tab for details.
Memory function [S]
The values selected for the four programs can be changed and memorized by the device. To do this, press the program button "P" until the display shows the program you wish to change. Set the required temperature and airflow rate. The memory symbol on the LCD flashes to indicate that the selected user program has changed. To memorize this setting in the user program, press and hold down the program selector button. The memory symbol continues to flash for approximately two seconds, and the settings save once the memory symbol stays on. To return to standard operation, press the program button until the program symbol disappears from the display.
Residual heat indicator
The residual heat indicator displays a warning to prevent injury from direct contact with the hot nozzle outlet. The warning symbol will flash until the temperature at the nozzle outlet has fallen below 140°F (60°C) at room temperature. It works after 90 seconds of heating and functions when the tool is unplugged. No indication will show if the heat gun has been operating for less than 90 seconds. The thermal cut-out will completely shut down the heat gun if it overheats.
Responsibility rests with the user. Care must be taken at all times when handling hot air tools.
Applications
| Temperature | 120 to 1200°F (49 to 649°C) |
| Airflow Rate | 3.6 to 17.6 CFM (continuously variable) |
| Switch | Cool air stage Variable temperature and airflow |
| Stages | 2 (continuously variable) |
| Preset Programs | Four customizable pre-set temperature and airflow programs Program 1: Temperature: 510°F (265°C) Airflow: 7.3 CFM Application: Shaping plastic pipes Program 2: Temperature: 660°F (350°C) Airflow: 9 CFM Application: welding plastics Program 3: Temperature: 860°F (460°C) Airflow: 11.4 CFM Application: paint stripping Program 4: Temperature: 1040°F (560°C) Airflow: 10.8 CFM Application: soldering |
| Voltage | 120 V AC/60 Hz |
| Output | 1600 W |
| Amps | 13.3 |
| Surface Conductivity | 104 Ω |
| Power Cord | Material: Industrial grade rubber Length: 6' (1.83 m) |
| Motor | Type: Brush motor Lifetime: 1000 hours |
| Heating Element | Ceramic |
| Dimensions | 9.96 x 3.41 x 7.87" (252.98 x 86.61 x 99.9 mm) Nozzle diameter: 1.3" (33.02 mm) |
| Weight | 2.19 lbs (35.1 oz) |
