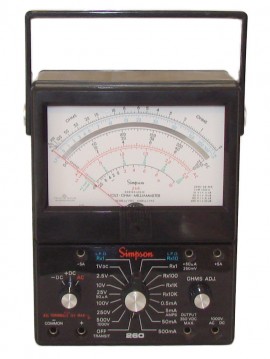

This VOM multimeter was designed for the special needs of solid-state circuitry measurements and features a resettable overload protection circuit.
This VOM multimeter was designed for the special needs of solid-state circuitry measurements and features a resettable overload protection circuit.
This low ohms VOM multimeter conducts in-circuit test without risk to components or causing digital circuits to switch states.
Features
| DC Voltage | Ranges: 250mV, 1V, 2.5V, 10V, 25V, 100V, 250V, 500V, 1,000V Accuracy: 2% of full scale Sensitivity: 20KΩ per volt |
| AC Voltage | Ranges: 2.5V, 10V, 25V, 100V, 250V, 500V, 1,000V Accuracy: 3% of full scale Sensitivity: 5KΩ per volt |
| Decibel | Ranges: -20 to 49dB Reference: 0dB = 1mW into 600Ω |
| AC Current | Up to 250AC amperes with AC Amp-Clamp Adapter Accessory 00541 |
| Batteries | 1.5V D, 9V (Neda No.13F, 1604A) |
| Fuse | F1 1A, 250V, type 3AG, quick acting Littlefuse® Type 312001, F2 2A, 600V Littlefuse® Type BLS or 2A 600V, Bussman® Type BBS |
| Size | 5.25 x 7 x 3.13in (13.34 x 17.78 x 7.94cm) |
| Weight | 2.25lb (1.02kg) |
| Rated Circuit To Ground Voltage | 1,000V AC/DC Max |
