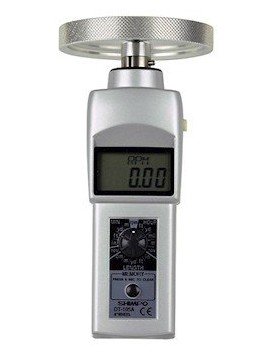

Features memory storage, quick adjustment unit knob, length functions, retrieval of last, maximum and minimum values, and LCD display. The 12" circumference aluminum wheel with knurled edge aids in usage where wheel slippage may occur as well as in high-temperature applications.
Features memory storage, quick adjustment unit knob, length functions, retrieval of last, maximum and minimum values, and LCD display. The 12" circumference aluminum wheel with knurled edge aids in usage where wheel slippage may occur as well as in high-temperature applications.
Features
| Display Range | 0.10 to 25,000 RPM with floating decimal |
| Accuracy | ±0.06 rpm: 0.10 to 999.9 rpm ±0.6 rpm: 1000.0 to 9999.9 rpm ±0.006% of reading ±1 digit (±2 rpm max.) 25,000 rpm |
| Display | 5 digit 0.47" (12 mm) high LCD |
| Measuring Units | Revolution: RPH, RPM Feet: FPH, FPM Miles: MPH Yards: YPH, YPM Inches: IPM Meters: mPH, mPM Length: m, cm, inches, feet, yards Total revolutions: REV |
| Memory System | 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extra measurements) |
| Detection | Optical coupler, 60 pulses/rev. |
| Update Time | 1 second (typical) |
| Over Range Indicator | Flashing numerals |
| Power Requirement | 2 x AA 1.5 V batteries (life: Approximately 65 hrs) |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Construction | Die-cast aluminum housing |
| Dimensions | 7.2 x 2.4 x 1.8" (182.5 x 60 x 46 mm) |
| Weight | 0.9 lb (400 g) |
| Approvals | CE |
