Bench-top Air Ionizer Blower with 2 Speed Fan and Universal Power Supply.
Bench-top Air Ionizer Blower with 2 Speed Fan and Universal Power Supply.

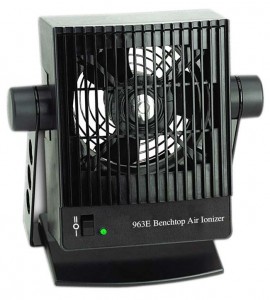

The SCS 963E Benchtop Air Ionizer is a self-contained ionizing air blower designed to remove static charges from non-conductive objects. The proprietary circuitry contained in the blower generates balanced levels of positive and negative ions. The ionizer is equipped with a two speed fan which allows the user to select the amount of ionized air to be delivered to the target object. The Benchtop Air Ionizer meets the required limits of ANSI/ESD S20.20 tested per ANSI/ESD STM3.1 or ESD TR53.
The Benchtop Air Ionizer reduces a static charge of ±1000 to ±100 V in less than two seconds (the discharge time) at a distance of 1' (30 cm) using the high fan speed. Testing is performed in accordance with the ionization standard ANSI/ESD STM3.1.
Caractéristiques
Applications
| Operating Voltage frequency | AC 220 V/23 0V 50/60 Hz 12 A 20 W |
| Power Outlet | IEC 320 Socket |
| Supplied Power Cord | 6' (1.8 m) cord with IEC 320 and Continental Europe (EURO) plugs or US plug |
| Air Velocity | low speed: 100 fpm (0.5 m/s) High speed: 300 fpm (1.5 m/s) |
| Static Discharge Time | 1' (30 cm) < 1 second at high fan speed, 3' (91 cm) < 5 second at high fan speed |
| Certifications and Approvals | CE, UL, C-UL, NOM |
| Dimensions | 6 x 7.4 x 3.0" (15.2 x 18.8 x 7.8 cm) |
| Weight | 2.5 lbs (1.1 kg) |
| Operating Voltage frequency | AC 220 V/23 0V 50/60 Hz 12 A 20 W |
| Power Outlet | IEC 320 Socket |
| Supplied Power Cord | 6' (1.8 m) cord with IEC 320 and Continental Europe (EURO) plugs or US plug |
| Air Velocity | low speed: 100 fpm (0.5 m/s) High speed: 300 fpm (1.5 m/s) |
| Static Discharge Time | 1' (30 cm) < 1 second at high fan speed, 3' (91 cm) < 5 second at high fan speed |
| Certifications and Approvals | CE, UL, C-UL, NOM |
| Dimensions | 6 x 7.4 x 3.0" (15.2 x 18.8 x 7.8 cm) |
| Weight | 2.5 lbs (1.1 kg) |
