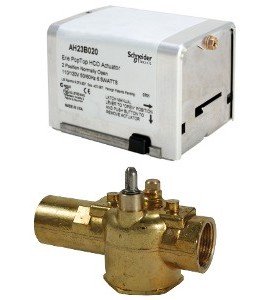

Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve’s actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler.
Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve’s actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler.
PopTop Series are two position spring return valves. When powered, the actuator moves to the desired position, tensing the spring return system. When power is removed the actuator returns to the normal position
PopTop Series two position spring return valves can be purchased with an optional built-in auxiliary SPDT end switch for interfacing or signaling; for example, zone pump burner control. Actuators are designed fror cycling applications (not constantly powered).
Caractéristiques
| Valve Assembly | |
| Body Size | 1/2 in |
| Configuration | 2-Way |
| Type | Zone |
| Connection | Sweat |
| Material Trim | Brass |
| Flow Coefficient | 2.5 cv |
| Control Media | Glycol 25 to 50% and Water |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | VT2 |
| Product Alert | Not for use with steam |
| Actuator | |
| Close-Off Pressure | 50 PSI |
| Actuator Type | Electric |
| Control Signal | 2-Position (On/Off) |
| Loss of Power Type | Spring Return |
| Loss of Power Position | Normally closed |
| Power Input Voltage | 110 VAC, 115 VAC, 120 VAC |
| Leads and Connections | 18 in Appliance |
| Mechanical Movement | Rotary |
| Protection Rating | NEMA 1 |
| Assembly Components | |
| Valve Body | VT2212 |
| Valve Linkage | None, tool-less connection |
| Actuator | AH13B020 |
| Actuator Range | Erie PopTop |
| Valve Assembly | |
| Body Size | 1/2 in |
| Configuration | 2-Way |
| Type | Zone |
| Connection | Sweat |
| Material Trim | Brass |
| Flow Coefficient | 2.5 cv |
| Control Media | Glycol 25 to 50% and Water |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | VT2 |
| Product Alert | Not for use with steam |
| Actuator | |
| Close-Off Pressure | 50 PSI |
| Actuator Type | Electric |
| Control Signal | 2-Position (On/Off) |
| Loss of Power Type | Spring Return |
| Loss of Power Position | Normally closed |
| Power Input Voltage | 110 VAC, 115 VAC, 120 VAC |
| Leads and Connections | 18 in Appliance |
| Mechanical Movement | Rotary |
| Protection Rating | NEMA 1 |
| Assembly Components | |
| Valve Body | VT2212 |
| Valve Linkage | None, tool-less connection |
| Actuator | AH13B020 |
| Actuator Range | Erie PopTop |
