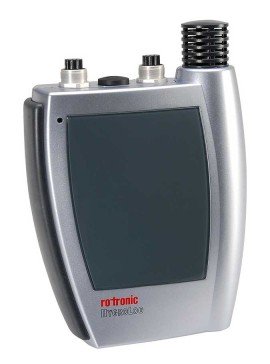

HygroLog NT series is a high-end data logger measuring relative humidity, temperature and dew point. This data logger with internal probe features 3 inputs and could be more if connected to a docking station.
HygroLog NT series is a high-end data logger measuring relative humidity, temperature and dew point. This data logger with internal probe features 3 inputs and could be more if connected to a docking station.
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n’y a pas de produit de remplacement direct. Ne vous inquiétez pas, nous avons quelques options pour vous aider à trouver ce dont vous avez besoin:
Visitez notre catégorie Enregistreurs de données de capteurs externes pour trouver des produits similaires.
Ou nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin:
The HygroLog NT series is the latest development in data loggers for relative humidity, temperature and dew point. Thanks to the precision of the new AirChip3000 technology on which they are based, the instruments achieve a degree of accuracy not seen before.
The new HygroLog NT series not only fulfils all FDA and GAMP requirements, but also supports users in validation. With a storage capacity of more than 47,000 data points, the loggers have a virtually unlimited memory. Measurement losses are ruled out by the digital communication interface between the HygroClip2 probe and the loggers.
Features
Applications
| Accuracy @ 23 ±5°C | ±0.8 %rh / ±0.1 K |
| Operating Range | 0 to 100 %rh /-10 to 60°C |
| Measurement Range with Integrated Probe | -100 to 200°C |
| Power Consumption | via optional docking station |
| Long-term stability | <1 %rh / year) |
| Humidity Sensor | Hygromer IN-1 |
| Temperature Sensor | PT100 1/3 DIN Class B |
| Probe Protection | ABS |
| Response Time T 63 | Typical 4 sec. |
| Memory Size | Memory up to 47,000 records per MB on memory cards |
| Dimension | 128 x 109 x 42 mm |
| Accuracy @ 23 ±5°C | ±0.8 %rh / ±0.1 K |
| Operating Range | 0 to 100 %rh /-10 to 60°C |
| Measurement Range with Integrated Probe | -100 to 200°C |
| Power Consumption | via optional docking station |
| Long-term stability | <1 %rh / year) |
| Humidity Sensor | Hygromer IN-1 |
| Temperature Sensor | PT100 1/3 DIN Class B |
| Probe Protection | ABS |
| Response Time T 63 | Typical 4 sec. |
| Memory Size | Memory up to 47,000 records per MB on memory cards |
| Dimension | 128 x 109 x 42 mm |
