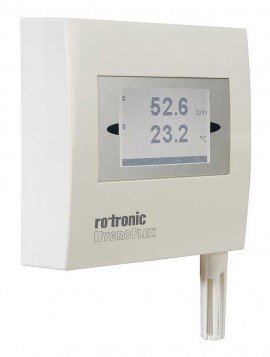

This 3-wire transmitter space version with display offers outsanding accuracy and repeatability in RH and temperature measurements and dew point calculation. Ideal for use in offices where precision and appearance is important.
This 3-wire transmitter space version with display offers outsanding accuracy and repeatability in RH and temperature measurements and dew point calculation. Ideal for use in offices where precision and appearance is important.
The HygroFlex3-series is the latest development in HVAC/R transmitters for relative humidity, temperature and dew point. Based on AirChip3000 technology, the instruments achieve a degree of accuracy not seen before.
In combination with advances in sensor technology and integration, the HygroFlex3-series provides superb precision and state-of-the-art functionality, taking humidity, temperature and dew point measurement to a whole new level of performance and reliability (< 2 %rh / 0.3 K).
Features
Applications
| Accuracy @ 23 ±5°C | ±1.0 %rh, ±0.2 K |
| Probe Type | Integrated |
| Operating Range | -10 to 60°C / 0 to 100 %rh, non-condensing |
| Measuring Range With Integrated Probe | -40 to 60°C / 0 to 100 %rh |
| Power Consumption | 15 to 40 VDC or 12 to 28 VAC/ <100 mA |
| Alarm Indicators | Yes |
| Exploitation Software | ROTRONIC HW4 |
| Probe Protection | Polycarbonate plastic cage, white |
| Filter Cartridge | Polyethylene dust filter, gray, 20 um |
| Circuit Type | 3-wire |
| Weight | 120 g |
| Accuracy @ 23 ±5°C | ±1.0 %rh, ±0.2 K |
| Probe Type | Integrated |
| Operating Range | -10 to 60°C / 0 to 100 %rh, non-condensing |
| Measuring Range With Integrated Probe | -40 to 60°C / 0 to 100 %rh |
| Power Consumption | 15 to 40 VDC or 12 to 28 VAC/ <100 mA |
| Alarm Indicators | Yes |
| Exploitation Software | ROTRONIC HW4 |
| Probe Protection | Polycarbonate plastic cage, white |
| Filter Cartridge | Polyethylene dust filter, gray, 20 um |
| Circuit Type | 3-wire |
| Weight | 120 g |
