Powerful and portable, this multi-gas detector tank tester version provides LEL, PPM, O2, H2S, and CO detection at the push of a button. In addition, this ergonomic detector features a float probe and dilution fitting, data logging, and a powerful internal pump with a low-flow auto shut-off and alarm.
Powerful and portable, this multi-gas detector tank tester version provides LEL, PPM, O2, H2S, and CO detection at the push of a button. In addition, this ergonomic detector features a float probe and dilution fitting, data logging, and a powerful internal pump with a low-flow auto shut-off and alarm.
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n’y a pas de produit de remplacement direct. Ne vous inquiétez pas, nous avons quelques options pour vous aider à trouver ce dont vous avez besoin:
Visitez notre catégorie Détecteurs de gaz multiples portables pour trouver des produits similaires.
Ou nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin:

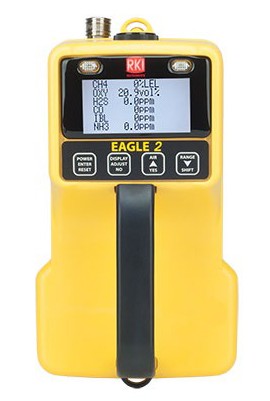

Equipped with a strong, internal low-flow pump, the RKI 724-001-TT EAGLE 2 Tank Tester Gas Detector is capable of drawing samples from up to 125' (38.1 m). The pump boasts auto shut-off and an alarm for simple operation, and the detector is designed for detection of O₂, CO and CO₂. The Tank Tester version of the gas detector comes with a float probe and a dilution fitting.
Features
| Oxygen (O2) | Measuring range: 0 to 40% Vol Accuracy: ± 0.5% O2 |
| Hydrogen Sulfide (H2S) | Measuring range: 0 to 100 ppm Accuracy: ± 5% of reading or ± 2 ppm H2S (Which ever is greater) |
| Carbon Monoxide (CO) | Measuring range: 0 to 500 ppm Accuracy: ± 5% of reading or ± 5 ppm CO (Which ever is greater) |
| Detection Principle | Catalytic combustion, electrochemical cell, galvanic cell, infrared, photoionization detector, and thermal conductivity |
| Sampling Method | Powerful, long-life internal pump (over 6000 hours) can draw samples over 125' (38.1 m). Flow rate approximately 2.0 SCFH |
| Response Time | 30 seconds to 90% (for most gases) using standard 5' (1.52 m) hose |
| Controls | 4 external glove friendly push buttons for operation, demand zero, and auto calibration. Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features |
| Alarms | 2 alarms per channel plus TWA and STEL alarms for toxics. The two alarms are fully adjustable for levels, latching or self reset, and silenceable Method: Buzzer 95 dB at 11.81" (30 cm), four high intensity LED’s |
| Safety Rating | Intrinsically safe, Class I, Groups A, B, C, D. Approvals: CSA/CE |
| Environmental | IP-64 |
| Enclosure | Weatherproof, chemical resistant, RFI/EMI coated high impact polycarbonate-PBT blend. Can operate in 2" (5.08 cm) of water without leakage. Ergonomically balanced with rugged top mounted handle. Water and dust resistant equivalent to IP64. |
| Operating Temperature and Humidity | -4 to 122°F (-20 to 50°C), 0 to 95% RH, non-condensing |
| Language | Readout can display in 5 languages (English, French, German, Italian, or Spanish) |
| Display | 3 display modes: display all gases, large font-autoscroll, or large font-manual scroll. Polyurethane protected overlay. Backlight, illuminates for alarms and by demand, with adjustable time |
| Power | Source: 4 alkaline or NiMH, size C batteries (Charger has alkaline recognition to prevent battery damage if charging is attempted with alkalines) Continuous operation: At 70°F (21.11°C), 18 hours using alkaline batteries, or 20 hours using NiMH |
| Dimensions | 9.5 x 5.25 x 5.875" (24.13 x 13.33 x 14.92 cm) |
| Weight | 3.8 lbs (1.72 g), standard 4 gas with batteries |
| Oxygen (O2) | Measuring range: 0 to 40% Vol Accuracy: ± 0.5% O2 |
| Hydrogen Sulfide (H2S) | Measuring range: 0 to 100 ppm Accuracy: ± 5% of reading or ± 2 ppm H2S (Which ever is greater) |
| Carbon Monoxide (CO) | Measuring range: 0 to 500 ppm Accuracy: ± 5% of reading or ± 5 ppm CO (Which ever is greater) |
| Detection Principle | Catalytic combustion, electrochemical cell, galvanic cell, infrared, photoionization detector, and thermal conductivity |
| Sampling Method | Powerful, long-life internal pump (over 6000 hours) can draw samples over 125' (38.1 m). Flow rate approximately 2.0 SCFH |
| Response Time | 30 seconds to 90% (for most gases) using standard 5' (1.52 m) hose |
| Controls | 4 external glove friendly push buttons for operation, demand zero, and auto calibration. Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features |
| Alarms | 2 alarms per channel plus TWA and STEL alarms for toxics. The two alarms are fully adjustable for levels, latching or self reset, and silenceable Method: Buzzer 95 dB at 11.81" (30 cm), four high intensity LED’s |
| Safety Rating | Intrinsically safe, Class I, Groups A, B, C, D. Approvals: CSA/CE |
| Environmental | IP-64 |
| Enclosure | Weatherproof, chemical resistant, RFI/EMI coated high impact polycarbonate-PBT blend. Can operate in 2" (5.08 cm) of water without leakage. Ergonomically balanced with rugged top mounted handle. Water and dust resistant equivalent to IP64. |
| Operating Temperature and Humidity | -4 to 122°F (-20 to 50°C), 0 to 95% RH, non-condensing |
| Language | Readout can display in 5 languages (English, French, German, Italian, or Spanish) |
| Display | 3 display modes: display all gases, large font-autoscroll, or large font-manual scroll. Polyurethane protected overlay. Backlight, illuminates for alarms and by demand, with adjustable time |
| Power | Source: 4 alkaline or NiMH, size C batteries (Charger has alkaline recognition to prevent battery damage if charging is attempted with alkalines) Continuous operation: At 70°F (21.11°C), 18 hours using alkaline batteries, or 20 hours using NiMH |
| Dimensions | 9.5 x 5.25 x 5.875" (24.13 x 13.33 x 14.92 cm) |
| Weight | 3.8 lbs (1.72 g), standard 4 gas with batteries |
