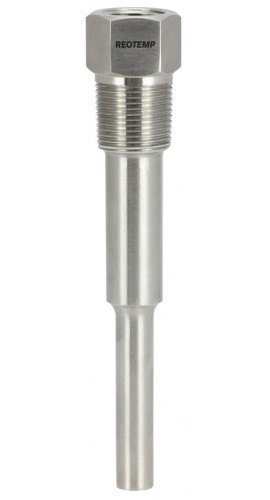

Ideal for applications requiring infrequent replacement and installed on smaller pipes or vessels, this thermowell removes instruments without dropping pressure or losing the process contents. In addition, it protects tools from getting bent by the process media, is machined from solid bar stock, and has a 2.5" (63.5 mm) stem length.
Ideal for applications requiring infrequent replacement and installed on smaller pipes or vessels, this thermowell removes instruments without dropping pressure or losing the process contents. In addition, it protects tools from getting bent by the process media, is machined from solid bar stock, and has a 2.5" (63.5 mm) stem length.
Features
Applications
Perfect for applications that require infrequent replacement and are commonly installed on smaller pipes or vessels.
| Type | Threaded |
| Stem Length | 2.5" (63.5 mm) |
| Material | 316 stainless steel |
| Process Connection | ¾" NPT |
| Shank | Type: Stepped Diameter: Ø0.5" (Ø12.7 mm) |
| Bore Diameter | 0.26" (6.6 mm) |
| Overall Length | 2.875" (73 mm) |
