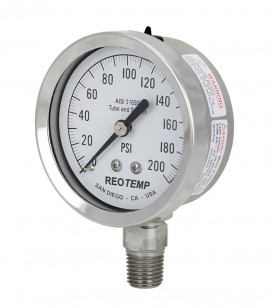

L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.
Rugged and all-welded construction, this heavy-duty repairable pressure gauge offers gauge integrity and superior case sealing. Easy to repair and calibrate using the twist-off bayonet ring and has tempered safety glass. In addition, it features a pressure range of 0 to 60 psi and a bottom connection.
Rugged and all-welded construction, this heavy-duty repairable pressure gauge offers gauge integrity and superior case sealing. Easy to repair and calibrate using the twist-off bayonet ring and has tempered safety glass. In addition, it features a pressure range of 0 to 60 psi and a bottom connection.
Caractéristiques
Applications
| Pressure Range | 0 to 60 psi |
| Accuracy | 2 - 1 - 2%, ASME grade A (2% up, 4% down for 10,000 psi and higher). |
| Ambient Limits | -40/150°F (-40/65.56°C) |
| Process Limits | -40/250°F (-40/121.11°C) |
| Maximum Working Pressure | Stable = 100% Momentary = 130% of scale |
| Case Type | 304SS |
| Tube and Socket | 316SS |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Environmental Protection | NEMA 4X/IP65 |
| Case Fill | Glycerin |
| Lens | Tempered safety glass |
| Dial Size | 2.5" (63.5 mm) |
| Dimension | 3.64 x 1.34 x Ø2.68" (92.46 x 34.04 x Ø68.07 mm) |
| Weight | 0.6 lbs (272.16 g) |
