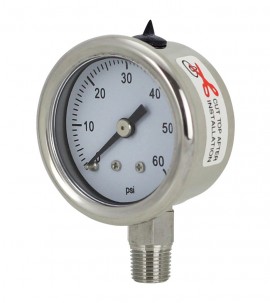

L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.
Ideal for industrial applications, this stainless steel pressure gauge with a small dial is resistant to corrosion from both environment and media. Field fillable and has an attractive crimp ring design with a -30" Hg/0 vacuum pressure range.
Ideal for industrial applications, this stainless steel pressure gauge with a small dial is resistant to corrosion from both environment and media. Field fillable and has an attractive crimp ring design with a -30" Hg/0 vacuum pressure range.
Caractéristiques
Applications
| Pressure Range | -30" Hg/0 psi |
| Accuracy | 3 - 2 - 3%, ASME grade B |
| Ambient Limits | -40/140°F (-40/60°C) |
| Process Limits | -40/150°F (-40/65.56°C) |
| Maximum Working Pressure | Stable = 100% Momentary = 110% of scale |
| Case Type | 304SS, crimped ring |
| Tube and Socket | 316SS |
| Mount Type | Bottom |
| Connection | ⅛" NPT |
| Case Fill | Dry |
| Other Materials | Case: 304SS Ring: 304SS Dial: White aluminum, black letters Case-to-socket: Screw connection |
| Environmental Protection | NEMA 4X/IP65 |
| Dial Size | 1.5" (38.1 mm) |
| Dimensions | 2.46 x 0.98 x Ø1.85" (62.48 x 24.89 x Ø46.99 mm) |
| Weight | 0.15 lbs (68.04 g) |
