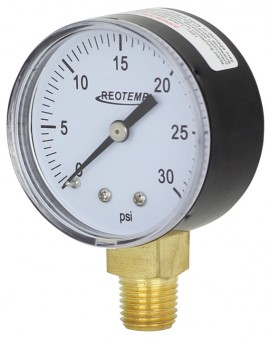

L'image est pour référence seulement, référez-vous à l'information sur le produit pour tous les détails.
Reliable and economical, this pressure gauge is ideal for applications where ambient or process corrosion is not of concern and for non-vibrating applications. In addition, this gauge features a standard black steel case with a snap-in lens, a dial size of 2" (50.8 mm), and a pressure range of 0 to 60 psi.
Reliable and economical, this pressure gauge is ideal for applications where ambient or process corrosion is not of concern and for non-vibrating applications. In addition, this gauge features a standard black steel case with a snap-in lens, a dial size of 2" (50.8 mm), and a pressure range of 0 to 60 psi.
Features
Applications
| Pressure Range | 0 to 60 psi |
| Accuracy | 3-2-3%, ASME Grade B |
| Ambient/Process Limits | -40/140°F |
| Maximum Working Pressure | Stable = 100% Momentary = 110% of scale |
| Wetted Materials | Tube and socket: Copper alloy |
| Lens | Plastic snap-in |
| Other Materials | Case: Black painted steel Ring: Snap-in lens Dial: White aluminum, black letters Case-to-socket: Screw connection |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Dry |
| Dial Size | 2" (50.8 mm) |
| Dimensions | 2.81 x 1.22 x Ø2.01" (71.4 x 31 x Ø51 mm) |
| Weight | 0.2 lbs (90.7 g) |
| Pressure Range | 0 to 60 psi |
| Accuracy | 3-2-3%, ASME Grade B |
| Ambient/Process Limits | -40/140°F |
| Maximum Working Pressure | Stable = 100% Momentary = 110% of scale |
| Wetted Materials | Tube and socket: Copper alloy |
| Lens | Plastic snap-in |
| Other Materials | Case: Black painted steel Ring: Snap-in lens Dial: White aluminum, black letters Case-to-socket: Screw connection |
| Mount Type | Bottom |
| Connection | ¼" NPT |
| Case Fill | Dry |
| Dial Size | 2" (50.8 mm) |
| Dimensions | 2.81 x 1.22 x Ø2.01" (71.4 x 31 x Ø51 mm) |
| Weight | 0.2 lbs (90.7 g) |
