The pressure pump comes with a 3' (0.9 m) hose for reliable connection. The pump is made of anodized aluminum, Delrin, stainless steel and polysulfone.
The pressure pump comes with a 3' (0.9 m) hose for reliable connection. The pump is made of anodized aluminum, Delrin, stainless steel and polysulfone.

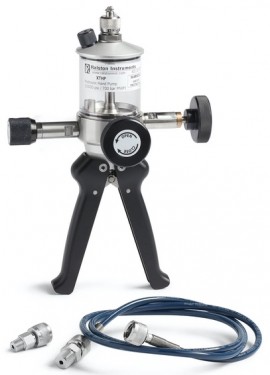

Get the job done right with help from the Ralston XTHP-2MSA Hydraulic Hand Pump, which is made of anodized aluminum, stainless steel, Delrin and polysulfone for durability. The pump comes with a 3' (0.9 m) hose made of reinforced polyamide and stainless steel and works with a wide selection of media, including alcohol, antifreeze, mineral oil and more.
Features
| Seal Type | Teflon, Viton (pump and process connection) |
| Operating Temperature | Pump: -15 to 140°F (-26 to 60°C); Reference connection and process connection: 0 to 225°F (-18 to 105°C); Hose: -40 to 140°F (-40 to 60°C) |
| Power Source | Hydraulic |
| Product Length | Pump: 5.7" (15 cm); Reference connection: 1.67" (43 mm); Process connection: 1.29" (33 mm); Hose: 3' (0.9 m) |
| Product Width | Pump: 7.5" (20 cm); Reference connection: 0.75" (20 mm); Process connection: 0.63" (17 mm) |
| Product Weight | Pump: 3.12 lbs (1.41 kg) |
| Output(s) | Male quick-test XT (pump) |
| Product Height | Pump: 10.6" (27 cm) |
| Pressure Limit | 10,000 psi; Burst pressure: 40,000 psi (pump) |
| Adjustment Resolution | 0.01 psi |
| Seal Type | Teflon, Viton (pump and process connection) |
| Operating Temperature | Pump: -15 to 140°F (-26 to 60°C); Reference connection and process connection: 0 to 225°F (-18 to 105°C); Hose: -40 to 140°F (-40 to 60°C) |
| Power Source | Hydraulic |
| Product Length | Pump: 5.7" (15 cm); Reference connection: 1.67" (43 mm); Process connection: 1.29" (33 mm); Hose: 3' (0.9 m) |
| Product Width | Pump: 7.5" (20 cm); Reference connection: 0.75" (20 mm); Process connection: 0.63" (17 mm) |
| Product Weight | Pump: 3.12 lbs (1.41 kg) |
| Output(s) | Male quick-test XT (pump) |
| Product Height | Pump: 10.6" (27 cm) |
| Pressure Limit | 10,000 psi; Burst pressure: 40,000 psi (pump) |
| Adjustment Resolution | 0.01 psi |
