Onset HOBO UX120-018 Plug Load Data Logger

Modèle: UX120-018

Onset HOBO UX120-018 Plug Load Data Logger-

Télécharger: datasheet

Plus de produits Onset HOBO

Demander à un expert

Onset HOBO UX120-018 Plug Load Data Logger

Modèle: UX120-018

Measures and records the power and energy consumption of 120V plug loads. Provides instant viewing of real-time plug load variables and time-stamped and totalized load data for detailed energy analysis.

Measures and records the power and energy consumption of 120V plug loads. Provides instant viewing of real-time plug load variables and time-stamped and totalized load data for detailed energy analysis.

Prix régulier $494.00 CAD
Disponibilité 2 à 3 semaines
Quantité
Choose between the following required accessories:

Communication

Software

Choose between the following required accessories:

Communication

Software

Onset HOBO UX120-018 Offers

HOBO data loggers requires HOBOware software (USB interface cable included w/CD purchase) and a communications device.

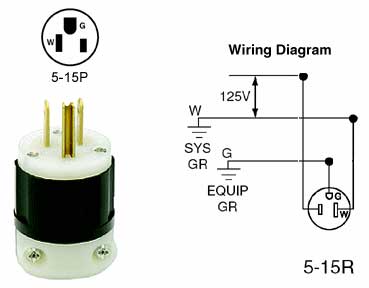

The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W. Indoor use only. Insulation Category 2.

Features

  • No wiring
  • Multiple load
  • Characterize load
  • Quick look tool
  • 0.5% measurement accuracy enables more reliable plug load energy data
  • "Meter Mode" provides instant viewing of real-time plug load variables
  • Provides time-stamped and totalized load data for detailed energy analysis
  • Large memory enables faster logging intervals for more comprehensive plug load profiles
  • Battery back-up ensures logged data remains intact in the event of a power outage or load failure
  • Full-featured LCD display provides visual diagnostics for easy deployment

Applications

  • Building audits

Supported Measurements

  • AC Current
  • AC Voltage
  • Amps (A)
  • Kilowatt Hours (kWh)
  • Power Factor (PF)
  • Volt-Amps (VA)
  • Volts (V)
  • Watt Hours (Wh)
  • Watts (W)

HOBOware

With the latest version of software (HOBOware 3.7.8), Optic Base Station and Waterproof Shuttle users will find much-improved communications methods.

For Mac users - Updating to apple's latest operating system (OS X 10.11.5) will remedy any communications issues you might have encountered with the HOBO U30 Weather Station and the Waterproof Shuttle.

HOBOmobile

HOBOmobile 1.5 for iOS can now push data to HOBOlink.com for free online data storage.

Download the Mobile App

HOBO Data Loggers UX120-018 Specifications

RMS Voltage Accuracy 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
RMS Current Accuracy 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Active Power Accuracy 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Power Factor Accuracy ±0.02
Drift Up to 0.5% typical within 1 year
Operating Environment Logging: 41° to 104°F (5° to 40°C); 0 to 95% RH (non-condensing), up to 6,562 ft (2,000 m) altitude
Operating Modes Meter or logging when launched with HOBOware
Logging Rate 1 second to 18 hours, 12 minutes, 15 seconds
Statistics Sampling Rate 60 Hz or 16.67 mS single-cycle
Start Modes Immediate, push button, date & time, or next interval
Cliquer ici pour toutes les spécifications du Onset HOBO UX120-018

What's included with the HOBO Data Loggers UX120-018

  • Plug Load Logger
  • AC power cord
datasheet pour le Onset HOBO UX120-018 Plug Load Data Logger

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Onset HOBO UX120-018 Plug Load Data Logger.

Onset HOBO BHW-PRO-USB Logiciel Onset HOBOware Pro compatible avec Mac et Windows BHW-PRO-USB
Interface simple et intuitive par pointage et clic. Ce logiciel est compatible avec tous les enregistreurs de données HOBO et les nœuds de données sans fil. Câble USB inclus.



Onset HOBO CABLE-USBMB USB Cable CABLE-USBMB
USB data logger to PC communications cable is 6 feet long and is coated in black plastic.



Poser une question sur le Onset HOBO UX120-018 Plug Load Data Logger

Onset HOBO UX120-018 Offers

HOBO data loggers requires HOBOware software (USB interface cable included w/CD purchase) and a communications device.

The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W. Indoor use only. Insulation Category 2.

Features

  • No wiring
  • Multiple load
  • Characterize load
  • Quick look tool
  • 0.5% measurement accuracy enables more reliable plug load energy data
  • "Meter Mode" provides instant viewing of real-time plug load variables
  • Provides time-stamped and totalized load data for detailed energy analysis
  • Large memory enables faster logging intervals for more comprehensive plug load profiles
  • Battery back-up ensures logged data remains intact in the event of a power outage or load failure
  • Full-featured LCD display provides visual diagnostics for easy deployment

Applications

  • Building audits

Supported Measurements

  • AC Current
  • AC Voltage
  • Amps (A)
  • Kilowatt Hours (kWh)
  • Power Factor (PF)
  • Volt-Amps (VA)
  • Volts (V)
  • Watt Hours (Wh)
  • Watts (W)

HOBOware

With the latest version of software (HOBOware 3.7.8), Optic Base Station and Waterproof Shuttle users will find much-improved communications methods.

For Mac users - Updating to apple's latest operating system (OS X 10.11.5) will remedy any communications issues you might have encountered with the HOBO U30 Weather Station and the Waterproof Shuttle.

HOBOmobile

HOBOmobile 1.5 for iOS can now push data to HOBOlink.com for free online data storage.

Download the Mobile App

En savoir plus...

HOBO Data Loggers UX120-018 Specifications

RMS Voltage Accuracy 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
RMS Current Accuracy 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Active Power Accuracy 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Power Factor Accuracy ±0.02
Drift Up to 0.5% typical within 1 year
Operating Environment Logging: 41° to 104°F (5° to 40°C); 0 to 95% RH (non-condensing), up to 6,562 ft (2,000 m) altitude
Operating Modes Meter or logging when launched with HOBOware
Logging Rate 1 second to 18 hours, 12 minutes, 15 seconds
Statistics Sampling Rate 60 Hz or 16.67 mS single-cycle
Start Modes Immediate, push button, date & time, or next interval
Cliquer ici pour toutes les spécifications du Onset HOBO UX120-018

What's included with the HOBO Data Loggers UX120-018

  • Plug Load Logger
  • AC power cord
datasheet pour le Onset HOBO UX120-018 Plug Load Data Logger

Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le Onset HOBO UX120-018 Plug Load Data Logger.

Onset HOBO BHW-PRO-USB Logiciel Onset HOBOware Pro compatible avec Mac et Windows BHW-PRO-USB
Interface simple et intuitive par pointage et clic. Ce logiciel est compatible avec tous les enregistreurs de données HOBO et les nœuds de données sans fil. Câble USB inclus.



Onset HOBO CABLE-USBMB USB Cable CABLE-USBMB
USB data logger to PC communications cable is 6 feet long and is coated in black plastic.



Poser une question sur le Onset HOBO UX120-018 Plug Load Data Logger
