The analyzer can be used indoors or outdoors. It samples dry or wet syngas and pressurized or low-pressure gas.
The analyzer can be used indoors or outdoors. It samples dry or wet syngas and pressurized or low-pressure gas.

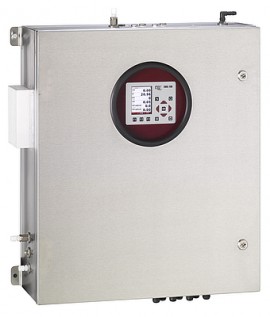

The MRU 944350 Syngas Analyzer is designed for use in industrial safe areas or laboratories. The analyzer can be installed in outdoor or indoor locations, and can sample dry or wet syngas, pressurized or low-pressure gas and can be used from single or double sampling points. It features a flow restrictor orifice gas inlet for high-pressure sites.
Features
| Measuring Range | CO: 0 to 100% (NDIR) CO2: 0 to 100% (NDIR) CH4: 0 to 100% (NDIR) O2: 0 to 25% (EC) O2: 0 to 25% (paramagnetic) H2S: 0 to 2/5 ppm (EC) H2: 0 to 10%/100% TCD Ambient Air Temperature: 41 to 113°F (5 to 45°C) or -4 to 113°F (-20 to 45°C) with cabinet heater |
| Calorific Value | 0 to 50 MJ/m3 or MJ/kg |
| Power Supply | Universal 90 to 240 Vac/47 to 63 Hz/60 W, 260 W with heater |
| Gas Conditioning | Electric gas cooler (Peltier) with constant dew point 41°F (5°C) |
| Interfaces | 4 x analog output 4 to 20 mA, floating, maximum load 500R4 x analog input 4 to 20 mA, passive inputs RS485 digital interface (Modbus RTU) |
| Protection | Sample gas shut-down solenoid valvePower supply cut-off in case of system alarm |
| Dimensions | 27.5591 x 23.622 x 8.26772" (700 x 600 x 210 mm) for wall or rack mounting |
| Weight | 99.208 lb (45 kg) |
| Measuring Range | CO: 0 to 100% (NDIR) CO2: 0 to 100% (NDIR) CH4: 0 to 100% (NDIR) O2: 0 to 25% (EC) O2: 0 to 25% (paramagnetic) H2S: 0 to 2/5 ppm (EC) H2: 0 to 10%/100% TCD Ambient Air Temperature: 41 to 113°F (5 to 45°C) or -4 to 113°F (-20 to 45°C) with cabinet heater |
| Calorific Value | 0 to 50 MJ/m3 or MJ/kg |
| Power Supply | Universal 90 to 240 Vac/47 to 63 Hz/60 W, 260 W with heater |
| Gas Conditioning | Electric gas cooler (Peltier) with constant dew point 41°F (5°C) |
| Interfaces | 4 x analog output 4 to 20 mA, floating, maximum load 500R4 x analog input 4 to 20 mA, passive inputs RS485 digital interface (Modbus RTU) |
| Protection | Sample gas shut-down solenoid valvePower supply cut-off in case of system alarm |
| Dimensions | 27.5591 x 23.622 x 8.26772" (700 x 600 x 210 mm) for wall or rack mounting |
| Weight | 99.208 lb (45 kg) |
