The analyzer is designed for measuring emissions. It is designed to focus on 7 common gases.
The analyzer is designed for measuring emissions. It is designed to focus on 7 common gases.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Voici le produit de remplacement direct :

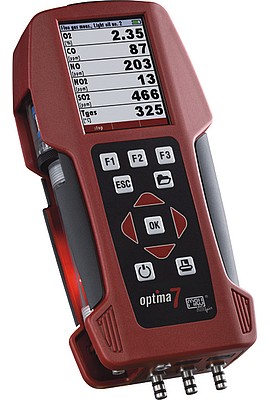

The MRU 410074US2 OPTIMA7 Biogas Analyzer with Bluetooth improves monitoring of emissions and exhausts. The analyzer is calibrated for 7 common gases in emissions to provide greater reliability. It is designed with an intuitive software menu to allow the user to adjust the settings directly from the display.
Caractéristiques
| Measuring Components | |
| Methane (MH4) | Measuring method: NDIR Measuring range: 0 to 100% Resolution: 0.1% Repeatability: ±0.3% or 3% reading |
| Carbon Dioxide (CO2) | Measuring method: NDIR Measuring range: 0 to 100% Resolution: 0.1% Repeatability: ±0.3% or 3% reading |
| Hydrogen Sulfide (H2S) | Measuring method: Electro-chemical Measuring range: 0 to 2000 ppm/5000 ppm Resolution: 1 ppm Repeatability: ±5 ppm or 5% (0 to 500 ppm), 10% (>500 ppm) reading |
| Oxygen (O2) Long Life | Measuring method: Electro-chemical Measuring range: 0 to 25% Resolution: 0.01% Repeatability: ±0.2% absolute |
| Hydrogen (H2) | Measuring method: Electro-chemical Measuring range: 0 to 1000 ppm/2000 ppm Resolution: 1 ppm Repeatability: ±5 ppm or 5% (0 to 500 ppm), 10% (>500 ppm) reading |
| Nitrogen (N2) | Measuring method: Calculated Measuring range: 0 to 100% Resolution: 0.1% |
| Calorific Value (Hu) | Measuring method: Calculated Measuring range: 0 to 36 MJ/m3 Resolution: 0.01 MJ/m3 |
| Carbon Monoxide (CO) | Measuring method: Electro-chemical Measuring range: 0 to 10,000/20,000 ppm Resolution: 1 ppm Repeatability: ±10 ppm or 5% (0 to 4000 ppm), 10% (>4000 ppm) reading |
| Nitric Monoxide (NO) | Measuring method: Electro-chemical Measuring range: 0 to 1000/5000 ppm Resolution: 1 ppm Repeatability: ±5 ppm or 5% (0 to 1000 ppm), 10% (>1000 ppm) reading |
| Nitric Dioxide (NO2) | Measuring method: Electro-chemical Measuring range: 0 to 200/1000 ppm Resolution: 1 ppm Repeatability: ±5 ppm or 5% (0 to 200 ppm), 10% (>200 ppm) reading |
| Nitrogen Oxide (NOx) | Measuring method: Calculated Measuring range: 0 to 5000 ppm Resolution: 1 ppm Repeatability: ±5 ppm or 5% (0 to 1000 ppm), 10% (>1000 ppm) reading |
| Sulfur Dioxide (SO2) | Measuring range: 0 to 2000 ppm/5000 ppm Resolution: 1 ppm Repeatability: ±10 ppm or 5% (0 to 2000 ppm), 10% (>5000 ppm) reading |
| Hydrogen Sulfide Dioxide (H2S) | Measuring range: 0 to 500 ppm/2000 ppm Resolution: 1 ppm Repeatability: ±5 ppm or 5% (0 to 500 ppm), 10% (>5000 ppm) reading |
| Gas Flow Velocity | Measuring method: S-type probe Measuring range: 1 to 100 m/s Resolution: 0.1 m/s Repeatability: ±0.2 m/s (2 to 10 m/s), ±0.5% (>10 m/s) |
| Flow Rate | Measuring method: Calculated Measuring range: 0.1 to 6000 m3/s Resolution: 0.1 m3/s Repeatability: User settable cross section area |
| Differential Temperature | Measuring method: NiCrNi Measuring range: -40 to 2192°F (-40 to 1200°C) Resolution: 1°F Repeatability: ±4°F (2°C), 0.5% reading |
| Differential Pressure | Measuring method: Piezo Measuring range: ±120 inH2O (300 hPa) Resolution: 0.01 hPa Repeatability: ±0.01 inH2O (0.03 hPa), 1% reading |
| Calculated Values (Fuel Type Depending) | |
| Carbon Dioxide (CO2) | Range: 0 to 20% Accuracy: ±0.3 vol. - % abs. |
| General Specifications | |
| Operating Conditions | Temperature: 41°F to 113°F (5 to 45°C) max. 95% RH, none condensing Storage: 4°F to 122°F (-20°C to 50°C) |
| Data Storage | Up to 16,000 measurements |
| Interfaces | SD card reader, USB, infrared, Bluetooth |
| Power Supply | Internal: Lithium-Ion battery, 15 hours operation time Mains: Wall plug unit 100 to 240 V AC, 50 to 60 Hz, 5 V DC, 1.2 A |
| Protection Class | IP30 |
| Cerfication | TUV ByRgG 280, VDI 4206-1, EN 50379 |
| Dimensions | 2.05 x 4.33 x 8.86" (52 x 110 x 225 mm) |
| Weight | Approximately 1.7 lbs (750 g) |
Cliquer sur une catégorie pour voir une sélection d'accessoires compatible avec le MRU 410074US2 OPTIMA7 Biogas Analyzer with Bluetooth.
