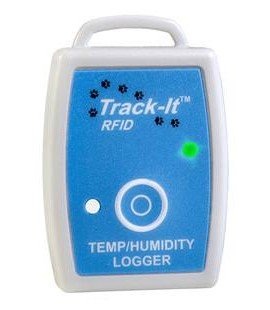

The Track-It™ RFID data logger is a battery-powered, stand alone logger that records from 22.5 hours to 337.5 days of temperature and humidity data. Unit can be configured and data transferred wirelessly, making it ideal for use in supply chain monitoring applications.
The Track-It™ RFID data logger is a battery-powered, stand alone logger that records from 22.5 hours to 337.5 days of temperature and humidity data. Unit can be configured and data transferred wirelessly, making it ideal for use in supply chain monitoring applications.
Features
Applications
| Record | Sample Rates: User configured 10 seconds, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 45, 60 minutes. (22hrs: 30min to 337.5 days) No. of Samples: 4000 or 8000 (depends on setup) |
| Record Mode | Instantaneous, max, min, average |
| Alarms | 2 or 4 user programmable high and low alarms |
| Communication | Passive RFID (wireless) |
| Battery | Included Coin Cell: Lithium CR2032 60°C Max, 1 year life Optional Coin Cell: Lithium BR2032 80°C Max, 6 month life |
| Dimensions | 2 x 1.32 x 0.5" (50.8 x 33.53 x 12.7mm) |
| Range | CR2032 Battery: -20 to 60°C (-4 to 140°F) BR2032 Battery: -20 to 80°C (-4 to 176°F) |
| Temperature | |
| Accuracy | 0.5°C (1.0°F) typical |
| Resolution | 0.5°C (1.0°F) |
| RH | |
| Range | CR2032 Battery: -20 to 60°C (-4 to 140°F) BR2032 Battery: -20 to 80°C (-4 to 176°F) |
| Accuracy | 0.5°C (1.0°F) typical |
| Resolution | 0.5°C (1.0°F) |
| Record | Sample Rates: User configured 10 seconds, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 45, 60 minutes. (22hrs: 30min to 337.5 days) No. of Samples: 4000 or 8000 (depends on setup) |
| Record Mode | Instantaneous, max, min, average |
| Alarms | 2 or 4 user programmable high and low alarms |
| Communication | Passive RFID (wireless) |
| Battery | Included Coin Cell: Lithium CR2032 60°C Max, 1 year life Optional Coin Cell: Lithium BR2032 80°C Max, 6 month life |
| Dimensions | 2 x 1.32 x 0.5" (50.8 x 33.53 x 12.7mm) |
| Range | CR2032 Battery: -20 to 60°C (-4 to 140°F) BR2032 Battery: -20 to 80°C (-4 to 176°F) |
| Temperature | |
| Accuracy | 0.5°C (1.0°F) typical |
| Resolution | 0.5°C (1.0°F) |
| RH | |
| Range | CR2032 Battery: -20 to 60°C (-4 to 140°F) BR2032 Battery: -20 to 80°C (-4 to 176°F) |
| Accuracy | 0.5°C (1.0°F) typical |
| Resolution | 0.5°C (1.0°F) |
