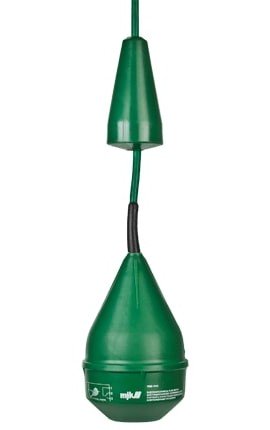

Suitable for highly automated systems, this float switch offers protection against control system failures and prevents pumps from running dry. In addition, this switch comes with a 100' (30.48 m) strong multi-fiber flexible cable that allows this switch to deliver reliable results.
Suitable for highly automated systems, this float switch offers protection against control system failures and prevents pumps from running dry. In addition, this switch comes with a 100' (30.48 m) strong multi-fiber flexible cable that allows this switch to deliver reliable results.
Caractéristiques
Functions
A hermetically sealed microswitch is activated by a moving counterweight when the float changes its position in the fluid. The changeover hysteresis can be adjusted by means of a counterweight placed on the cable. The counterweight also ensures that this float switch is always correctly positioned and makes the bend of the cable less sharp.
Applications
| Contact System | Mechanical change-over switch (SPDT) |
| Maximum Load | 16 A at 200 V AC, 0.5 A at 220 V DC |
| Temperature | -5 to 150°F (-20.5 to 65.5°C) |
| Materials | Polypropylene/oil resistant PVC (float housing/cable) |
| Cable | 3 X AWG 17, oil resistant PVC insulation (Diameter ⅓" [8.5 mm]) |
| Approvals | Switch UL U83 161 3 (16A 125VAC). CE: EN61000-6-4 2007/EN61000-6-2 2005 |
| Dimensions | Diameter: 4" (101.6 mm) Height: 6.3" (160.02 mm) |
| Contact System | Mechanical change-over switch (SPDT) |
| Maximum Load | 16 A at 200 V AC, 0.5 A at 220 V DC |
| Temperature | -5 to 150°F (-20.5 to 65.5°C) |
| Materials | Polypropylene/oil resistant PVC (float housing/cable) |
| Cable | 3 X AWG 17, oil resistant PVC insulation (Diameter ⅓" [8.5 mm]) |
| Approvals | Switch UL U83 161 3 (16A 125VAC). CE: EN61000-6-4 2007/EN61000-6-2 2005 |
| Dimensions | Diameter: 4" (101.6 mm) Height: 6.3" (160.02 mm) |
