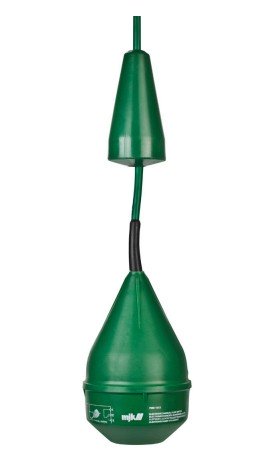

Suitable for many highly automated systems, the float switch provides additional protection against control system failures, preventing pumps from running dry, etc. It features up-to-date, environmentally friendly materials. It delivers reliable results where other float switches fail with the extra durability of the potted switching components.
Suitable for many highly automated systems, the float switch provides additional protection against control system failures, preventing pumps from running dry, etc. It features up-to-date, environmentally friendly materials. It delivers reliable results where other float switches fail with the extra durability of the potted switching components.
The float switch has unique counterweight system.
Features
Applications
| Output Signal | Mechanical contact system (microswitch), change-over switch (SPDT) |
| Max. Load | AC: 250V / 16A. Voltage Max. 250V AC, DC: 220V / 0,5A. 24V / 16A |
| Temperature | -5 to 150°F (-20 to 60°C) |
| Materials | Body: Polypropylene, Bending relief: Oil resistant PVC, Cable: Oil resistant PVC |
| Cable | 3 x 1 mm2 (AWG 17), dia. ⅓" (8 mm) |
| Cable Length | 100' (30 m) |
| Enclosure | IP 68/NEMA 6P |
| Approvals | CE approvals: EN61000-6-1, EN61000-6-3, EN61000-6-4 2007, EN61000-6-2 2005. Switch UL U83 161 3 (16 A 125 VAC) |
| Output Signal | Mechanical contact system (microswitch), change-over switch (SPDT) |
| Max. Load | AC: 250V / 16A. Voltage Max. 250V AC, DC: 220V / 0,5A. 24V / 16A |
| Temperature | -5 to 150°F (-20 to 60°C) |
| Materials | Body: Polypropylene, Bending relief: Oil resistant PVC, Cable: Oil resistant PVC |
| Cable | 3 x 1 mm2 (AWG 17), dia. ⅓" (8 mm) |
| Cable Length | 100' (30 m) |
| Enclosure | IP 68/NEMA 6P |
| Approvals | CE approvals: EN61000-6-1, EN61000-6-3, EN61000-6-4 2007, EN61000-6-2 2005. Switch UL U83 161 3 (16 A 125 VAC) |
