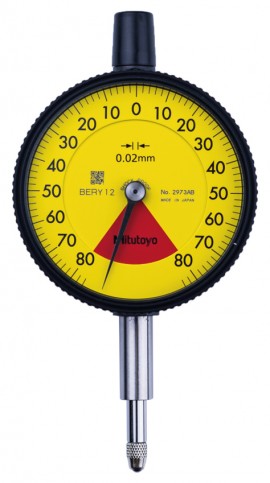

Mitutoyo 2973AB Series 2 Metric Standard One Revolution Dial Indicator with flat back, 0 to 1.6 mm, 0.02 mm

Modèle: 2973AB

Mitutoyo 2973AB Series 2 Metric Standard One Revolution Dial Indicator with flat back, 0 to 1.6 mm, 0.02 mm-

Plus de produits Mitutoyo

Demander à un expert

Mitutoyo 2973AB Series 2 Metric Standard One Revolution Dial Indicator with flat back, 0 to 1.6 mm, 0.02 mm

Modèle: 2973AB

Accurate and rugged, this dial indicator offers complete measurement with one sweep to eliminate miscounting errors on an easy-to-read scale and conforms to ISO/JIS standards. In addition, it features a measuring range of 0 to 1.6 mm and is ideal for determining if a spindle range is within or outside a tolerance.

Accurate and rugged, this dial indicator offers complete measurement with one sweep to eliminate miscounting errors on an easy-to-read scale and conforms to ISO/JIS standards. In addition, it features a measuring range of 0 to 1.6 mm and is ideal for determining if a spindle range is within or outside a tolerance.

Prix spécial $113.32 CAD
Prix régulier $131.00 CAD
Disponibilité 2 à 3 semaines
Quantité

Mitutoyo 2973AB offre

Work with visible readings and better durability with this dial indicator that features a glare-free crystal and a scratch-resistant coating. In addition, this indicator conforms to ISO/JIS standards and features trouble-free stem clamping, a long clamping range, and a durable stem and spindle.

Caractéristiques

  • Unique shock-proof mechanism protects against shock from sudden spindle retraction
  • Includes green limit markers for quick, easy tolerance judgments
  • Thumb screw bezel lock is easy-to-use for zeroing
  • Rack gear is machine ground for tighter fit, increased accuracy
  • Greater rigidity in the bearing plate reduces retracing error by up to 20%
  • Four-screw mounting increases impact resistance for better, longer accuracy
  • No through screw hole on the frame provides better dust resistance
  • Contact point is carbide tipped for lasting accuracy, durability
  • Improved resistance to shop-floor contaminants such as water and dust
  • About 40% lighter than a conventional dial indicator
  • Crystal is glare-free with a scratch-resistant coating
  • Manufactured to meet ISO/JIS standards
  • Eliminates the possibility of reading errors due to miscounting multiple revolutions

Applications

  • General manufacturing
  • Aerospace
  • Automotive
  • Defense
  • Electronics
  • Energy
  • Plastics and rubber

Spécifications pour le Mitutoyo 2973AB

Range 0 to 1.6 mm
Accuracy ±0.016 mm
Graduation 0.02 mm
Spindle Stroke 2 mm
Dial Reading 80-0-80
Measuring Force 0.4 to 1.4 N
Back Type Flat back
Conformity Meets ISO/JIS standards
Stem Diameter Ø0.31" (Ø8 mm)
Dimensions 4.31 x 0.96" (109.5 x 24.5 mm)
Weight 0.16 lbs (75 g)

What's included with the Mitutoyo 2973AB

  • Dial Indicator
  • Fitted Plastic Carrying Case

Poser une question sur le Mitutoyo 2973AB Series 2 Metric Standard One Revolution Dial Indicator with flat back, 0 to 1.6 mm, 0.02 mm

Mitutoyo 2973AB offre

Work with visible readings and better durability with this dial indicator that features a glare-free crystal and a scratch-resistant coating. In addition, this indicator conforms to ISO/JIS standards and features trouble-free stem clamping, a long clamping range, and a durable stem and spindle.

Caractéristiques

  • Unique shock-proof mechanism protects against shock from sudden spindle retraction
  • Includes green limit markers for quick, easy tolerance judgments
  • Thumb screw bezel lock is easy-to-use for zeroing
  • Rack gear is machine ground for tighter fit, increased accuracy
  • Greater rigidity in the bearing plate reduces retracing error by up to 20%
  • Four-screw mounting increases impact resistance for better, longer accuracy
  • No through screw hole on the frame provides better dust resistance
  • Contact point is carbide tipped for lasting accuracy, durability
  • Improved resistance to shop-floor contaminants such as water and dust
  • About 40% lighter than a conventional dial indicator
  • Crystal is glare-free with a scratch-resistant coating
  • Manufactured to meet ISO/JIS standards
  • Eliminates the possibility of reading errors due to miscounting multiple revolutions

Applications

  • General manufacturing
  • Aerospace
  • Automotive
  • Defense
  • Electronics
  • Energy
  • Plastics and rubber
En savoir plus...

Spécifications pour le Mitutoyo 2973AB

Range 0 to 1.6 mm
Accuracy ±0.016 mm
Graduation 0.02 mm
Spindle Stroke 2 mm
Dial Reading 80-0-80
Measuring Force 0.4 to 1.4 N
Back Type Flat back
Conformity Meets ISO/JIS standards
Stem Diameter Ø0.31" (Ø8 mm)
Dimensions 4.31 x 0.96" (109.5 x 24.5 mm)
Weight 0.16 lbs (75 g)

What's included with the Mitutoyo 2973AB

  • Dial Indicator
  • Fitted Plastic Carrying Case
