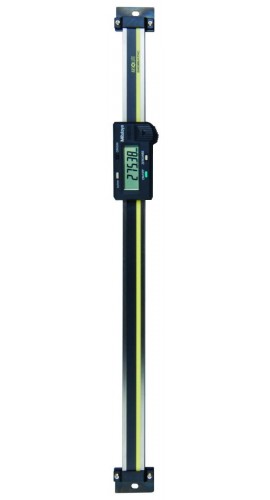

Mitutoyo 572-213-10 Absolute Digimatic Scale Unit, 0-12" (0-300mm), Horizontal, SPC Output

Modèle: SD-12"D | No. de commande: 572-213-10

Mitutoyo 572-213-10 Absolute Digimatic Scale Unit, 0-12" (0-300mm), Horizontal, SPC Output-

Télécharger: datasheet

Plus de produits Mitutoyo

Demander à un expert

Mitutoyo 572-213-10 Absolute Digimatic Scale Unit, 0-12" (0-300mm), Horizontal, SPC Output

Modèle: SD-12"D | No. de commande: 572-213-10

The Mitutoyo SD-12"D Horizontal Single-Function Digimatic Scale is safely embedded in the hardened stainless steel blade. It has no rack, no pinion, and no glass scale. Comes with SPC output.

The Mitutoyo SD-12"D Horizontal Single-Function Digimatic Scale is safely embedded in the hardened stainless steel blade. It has no rack, no pinion, and no glass scale. Comes with SPC output.

Prix spécial $565.71 CAD
Prix régulier $769.00 CAD
Disponibilité 2 à 3 semaines
Quantité

Mitutoyo SD-12"D Offers

Horizontal single-function

Functions

  • Origin-set
  • Zero-setting
  • Power on/off
  • Presetting
  • Data hold
  • Data output
  • Inch/mm conversion (on inch/metric models only)
  • Alarm: Low voltage, Counting value composition error

Features

  • SD series facilitates mounting on jigs, tools, and small machine tools to enable accurate positioning
  • Built-in absolute scale including the ABS point requires no zero-set every time the power is turned on
  • In addition, reliability has improved thanks to elimination of over speed errors
  • Long battery life for easier maintenance EC counters are available as external display units
  • Equipped with an output port to transfer measurement data, This allows implementation in control systems and gaging systems

Mitutoyo 572-213-10 Specifications

Range 0 to 300mm / 0 to 12"
Accuracy 0.004mm / 0.002"
Repeatability 0.01mm / 0.0005"
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Battery SR44 (1pc. 938882)
Battery Life Approx. 3.5 years under normal use
Weight 370g
Cliquer ici pour toutes les spécifications du Mitutoyo SD-12"D

What's included with the Mitutoyo SD-12"D

  • Mounting Brackets
  • Battery
datasheet pour le Mitutoyo 572-213-10 Absolute Digimatic Scale Unit, 0-12" (0-300mm), Horizontal, SPC Output
