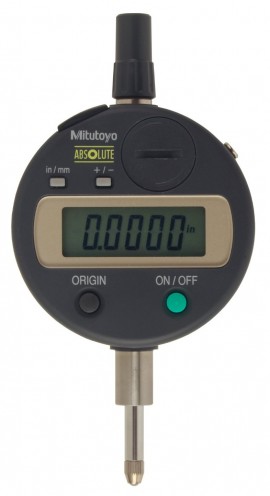

Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output

Modèle: 543-791-12 | CUP: 603908569831

Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output-

Plus de produits Mitutoyo

Demander à un expert

Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output

Modèle: 543-791-12 | CUP: 603908569831

This Absolute Digimatic Indicator is compact and employs the absolute linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on.

This Absolute Digimatic Indicator is compact and employs the absolute linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on.

Prix spécial $344.27 CAD
Prix régulier $398.00 CAD
Disponibilité 2 à 3 semaines
Quantité

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 543-791-12 Absolute Digitmatic Indicator

Traceable Calibration Certificate Icon

Certificat d’étalonnage de traçabilité pour votre 543-791-12 Absolute Digitmatic Indicator

Mitutoyo 543-791 Offers

Features

  • As compact as standard Series 2 dial indicators
  • After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life
  • Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors
  • SPC data output
  • IP42 Dust Water Protection
  • Alarm: Low Voltage, Counting value composition error, Over-flow error
  • Absolute electrostatic capacitance type liner encoder

Applications

Ideal for the following applications: Digital Gauging, Fabricating, Manufacturing, Machining

Mitutoyo 543-791 Specifications

Resolution .0005in 0.01mm
Range .5in 12.7mm
Accuracy .00012
Stem Diameter Ø8in
Force 2.0N or less
Contact Point M2.5x0.45 Thread

Le Mitutoyo 543-791-12 comprend

  • Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output

Poser une question sur le Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output

Mitutoyo 543-791 Offers

Features

  • As compact as standard Series 2 dial indicators
  • After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life
  • Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors
  • SPC data output
  • IP42 Dust Water Protection
  • Alarm: Low Voltage, Counting value composition error, Over-flow error
  • Absolute electrostatic capacitance type liner encoder

Applications

Ideal for the following applications: Digital Gauging, Fabricating, Manufacturing, Machining

En savoir plus...

Mitutoyo 543-791 Specifications

Resolution .0005in 0.01mm
Range .5in 12.7mm
Accuracy .00012
Stem Diameter Ø8in
Force 2.0N or less
Contact Point M2.5x0.45 Thread

Le Mitutoyo 543-791-12 comprend

  • Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output

Poser une question sur le Mitutoyo 543-791-12 Absolute Digitmatic Indicator, 0.5" Range, M2.5x0.45 Thread Contact Point, with SPC Data Output
