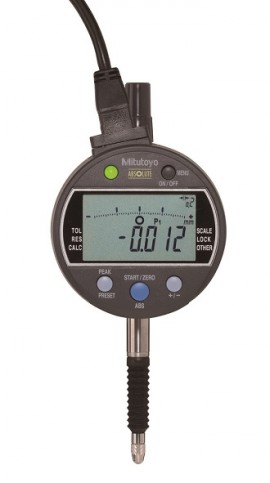

The digital indicator signal ID-C is an externally-powered digimatic indicator with an N-ch open drain –NG, OK, +NG output, and has 12.7 mm with a lug back.
The digital indicator signal ID-C is an externally-powered digimatic indicator with an N-ch open drain –NG, OK, +NG output, and has 12.7 mm with a lug back.
The digital indicator signal ID-C saves three different preset and tolerance settings.
Features
| Range: | 0.5"/12.7 mm |
| Max. Permissible Error of Indication: | 0.0001"/0.003 mm |
| Hysteresis: | 0.0001"/0.002 mm |
| Repeatability: | 0.0001"/0.002 mm |
| Mass: | 170 g |
| Digital Step: | 0.00005"/0.001 mm |
| Scale: | Capacitance type, ABSOLUTE linear encoder |
| Max. Response Speed: | Unlimited |
| Stem ø: | 8 mm |
| Power Supply: | 1 battery CR-2032 |
