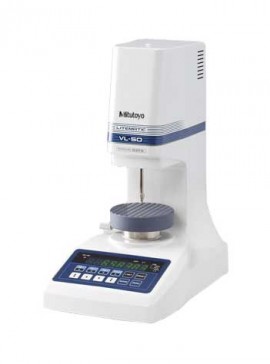

Ideal for measurements of high-precision, deformed, or delicate workpieces, this high-resolution digimatic measuring unit provides a low and constant measuring force of 0.01N. Designed to measure many materials such as rubber, plastic, film, sheet metal, semiconductors, medical specimens, and other complicated components.
Ideal for measurements of high-precision, deformed, or delicate workpieces, this high-resolution digimatic measuring unit provides a low and constant measuring force of 0.01N. Designed to measure many materials such as rubber, plastic, film, sheet metal, semiconductors, medical specimens, and other complicated components.
Ce produit excède les dimensions/poids de livraison standard, donc il ne se qualifie pas pour la livraison gratuite. Nous vous contacterons avec vos frais de livraisons.
Caractéristiques
High-accuracy measurement
The use of a low thermal-expansion material for the spindle and ceramic for the measuring table minimizes the effect of temperature variation during use. This unit is rust-free, simplifying maintenance and management.
| Measuring Range | 0 to 2" (0 to 50 mm) |
| Resolution (Selectable) | 0.0000005, 0.000005, 0.00005" (0.01, 0.1, 1.0 µm) |
| Display Unit | Character height 0.6" (14 mm)/8 digits (excluding "minus" sign) |
| Scale Type | 4/4 photoelectric reflection linear encoder |
| Stroke | 2" (51.5 mm) with standard contact point |
| Accuracy | At 68°F (20°C): (0.5 + L/100)μm L = Measured length (mm) Guarantee temperature: 20±1°C |
| Repeatability | σ = 0.05 μm |
| Measuring Force | 0.01 N (approximately 1 gf) |
| Spindle Feed Speed | Measuring: Approximately 0.08"/s (2 mm/s) or 0.16"/s (4 mm/s), selectable by parameter Quick feed: Approximately 0.3"/s (8 mm/s) |
| Standard Contact Point | ø 3 mm carbide ball |
| Worktable | ø 100 (Ceramic, grooved, replaceable) |
| Input | Data can be input with the foot switch |
| Output | SPC output RS-232C output (switching by parameter) |
| Power | Supply: 85 V to 264 V AC (connected to AC adapter) Consumption: Maximum 12 W (12 V, 1 A) |
| Dimensions | 11.81 x 7.95 x 14.97" (300 x 202 x 380.2 mm) |
| Weight | 35.2 lbs (19 kg) |
