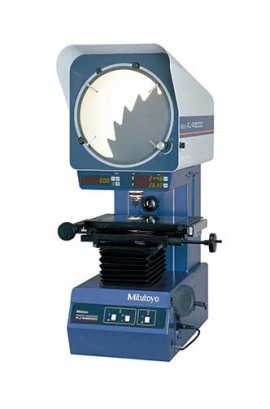

Offers an easy-to-use design and a digital angle display which eliminates the need to perform complex calculations. This profile projector has a protractor screen diameter of 12.4" (315 mm), and angle LED display resolution of 1 or 0.01° (switchable).
Offers an easy-to-use design and a digital angle display which eliminates the need to perform complex calculations. This profile projector has a protractor screen diameter of 12.4" (315 mm), and angle LED display resolution of 1 or 0.01° (switchable).
Discontinué!
Ce produit a été discontinué et n’est plus disponible. Il n’y a pas de produit de remplacement direct. Ne vous inquiétez pas, nous avons quelques options pour vous aider à trouver ce dont vous avez besoin:
Visitez notre catégorie Jauges de surface de profil pour trouver des produits similaires.
Ou nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin:
Caractéristiques
| Projected Image | Inverted image |
| Protractor Screen | Diameter: 12.4" (315 mm) Screen material: Fine ground glass Reference line: Cross hair line Angle display (LED): 1° or 0.01° Resolution (switchable), ±360° Range |
| Projection Lens | Standard accessory: 10 x (172-202) |
| Magnification Accuracy | Contour illumination: ±0.1% or less Surface illumination: ±0.15% or less |
| XY Range | 8 x 4" (23.20 x 101.6 mm) Resolution: 0.0001" (0.001 mm) Measuring Unit: Built-in linear scales Table size: 14.96 x 9.84" (380 x 250 mm) Maximum workpiece height: 3.64" (92.5 mm) |
| Power Supply | 120 V AC, 50/60Hz |
| Weight | 308 lbs. (140 kg) |
| Projected Image | Inverted image |
| Protractor Screen | Diameter: 12.4" (315 mm) Screen material: Fine ground glass Reference line: Cross hair line Angle display (LED): 1° or 0.01° Resolution (switchable), ±360° Range |
| Projection Lens | Standard accessory: 10 x (172-202) |
| Magnification Accuracy | Contour illumination: ±0.1% or less Surface illumination: ±0.15% or less |
| XY Range | 8 x 4" (23.20 x 101.6 mm) Resolution: 0.0001" (0.001 mm) Measuring Unit: Built-in linear scales Table size: 14.96 x 9.84" (380 x 250 mm) Maximum workpiece height: 3.64" (92.5 mm) |
| Power Supply | 120 V AC, 50/60Hz |
| Weight | 308 lbs. (140 kg) |
